Technical Specifications
Parameters and characteristics for this part
| Specification | LED1202QTR |
|---|---|
| Current - Output / Channel [custom] | 20 mA |
| Dimming | Analog |
| Frequency | 400 kHz |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

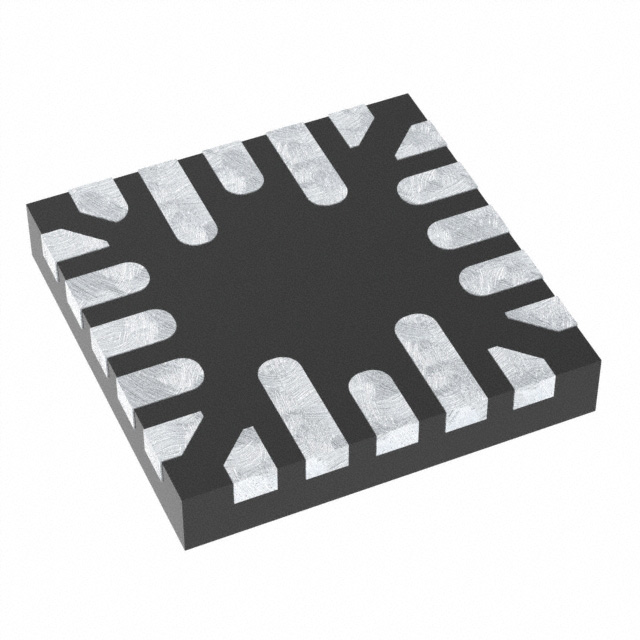

| Package / Case | 20-UFQFN |
| Supplier Device Package | 20-QFN (3x3) |
| Type | DC DC Controller |
| Voltage - Output | 5 V |
| Voltage - Supply (Max) [Max] | 5 V |
| Voltage - Supply (Min) [Min] | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.46 | |
| 10 | $ 2.21 | |||
| 25 | $ 2.09 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.21 | |||
| Digi-Reel® | 1 | $ 2.46 | ||
| 10 | $ 2.21 | |||
| 25 | $ 2.09 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.21 | |||
| Tape & Reel (TR) | 4000 | $ 1.13 | ||
| 8000 | $ 1.08 | |||
Description
General part information
LED1202 Series
The LED1202 is a 12-channel low quiescent current LED driver; it guarantees 5 V output driving capability and each channel is able to provide up to 20 mA with a headroom voltage of 350 mV (typ.) only. The output current can be adjusted separately for each channel by 8-bit analog and 12-bit digital dimming control.
A slow turn-on and turn-off time improves the system low noise generation performance; moreover, the phase shifting function helps to reduce the inrush current. Eight patterns can be stored in the internal registers for automatic sequencing without MCU intervention.
The pattern sequence can be also configured for duration time and number of repetition. For multi-device applications, a common clock domain can be shared for timing synchronization. The device includes thermal shutdown and open LED detection.
