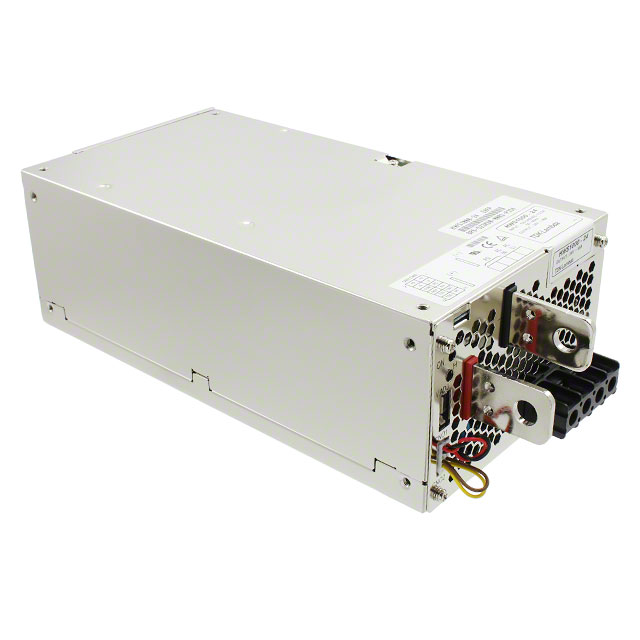

HWS1000-24
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 24 V
Deep-Dive with AI
Search across all available documentation for this part.
HWS1000-24
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 24 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS1000-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 46 A |
| Efficiency | 87 % |
| Features | Remote On/Off, Remote Sense, Universal Input, Adjustable Output, DC Input Capable, Load Sharing |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 240 mm |
| Size / Dimension [x] | 9.45 " |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 3.25 " |
| Size / Dimension [z] | 82.6 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
HWS1000 Series
Switching Power Supplies 1055W 36V 29.3A
| Part | Power (Watts) | Approval Agency | Applications | Voltage - Isolation | Voltage - Output 1 | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output 1 [custom] | Efficiency | Type | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Charge Current - Max [Max] | Battery Chemistry | Number of Cells | Power - Max [Max] | Size / Dimension [y] | Size / Dimension [z] | Weight | Voltage - Nominal |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 48 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 28 A | 88 % | Enclosed | 1 | 85 VAC | 265 VAC | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 36 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 88 % | Conformal Coated Enclosed | 1 | 85 VAC | 265 VAC | 30.7 A | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 24 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 87 % | Enclosed | 1 | 85 VAC | 265 VAC | 46 A | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 6 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 81 % | Enclosed | 1 | 85 VAC | 265 VAC | 167 A | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 48 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 28 A | 88 % | Conformal Coated Enclosed | 1 | 85 VAC | 265 VAC | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 3 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 73 % | Conformal Coated Enclosed | 1 | 85 VAC | 265 VAC | 200 A | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 60 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 88 % | Conformal Coated Enclosed | 1 | 85 VAC | 265 VAC | 18 A | |||||||||
TDK-LAMBDA | 1 kW | CE | ITE (Commercial) | 3000 V | 6 V | Chassis Mount | -10 °C | 70 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5 " | 3.25 " | 240 mm | 9.45 " | 127 mm | 82.6 mm | 81 % | Conformal Coated Enclosed | 1 | 85 VAC | 265 VAC | 167 A | |||||||||
TDK-LAMBDA | CE | Desktop | -20 C | 74 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5.91 in | 2.4 in | 240 mm | 9.45 " | Enclosed | 17 A | Lead Acid | 1 | 1000 W | 150 mm | 61 mm | 2300 g | 60 V | ||||||||||||
TDK-LAMBDA | CE | Desktop | -20 C | 74 °C | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 5.91 in | 2.4 in | 240 mm | 9.45 " | Enclosed | 29 A | Lead Acid | 1 | 1000 W | 150 mm | 61 mm | 2300 g | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HWS1000 Series
Switching Power Supplies 1055W 36V 29.3A
