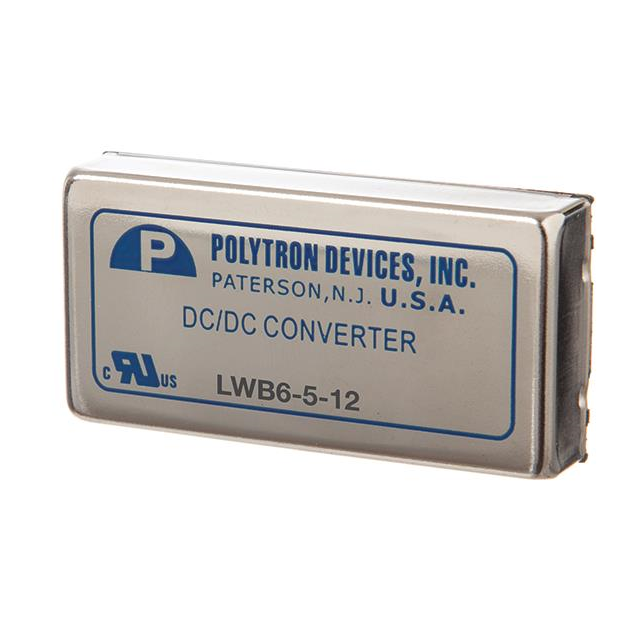

LWB6-5-12

Active

Polytron

DC DC CONVERTER +/-12V 6W

Search across all available documentation for this part.

Active

Polytron

DC DC CONVERTER +/-12V 6W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER +/-12V 6W

Part	Applications	Number of Outputs	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 2	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Polytron LWB6-5-12	ITE (Commercial)	2	5-DIP Module	6 W	4.5 V	-12 V	12 V	250 mA	250 mA	1.6 kV	Through Hole	85 %	9 V	-40 °C	100 °C	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 61.00

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 4.5V - 9V Input
