N7E50-N516RB-40

Active

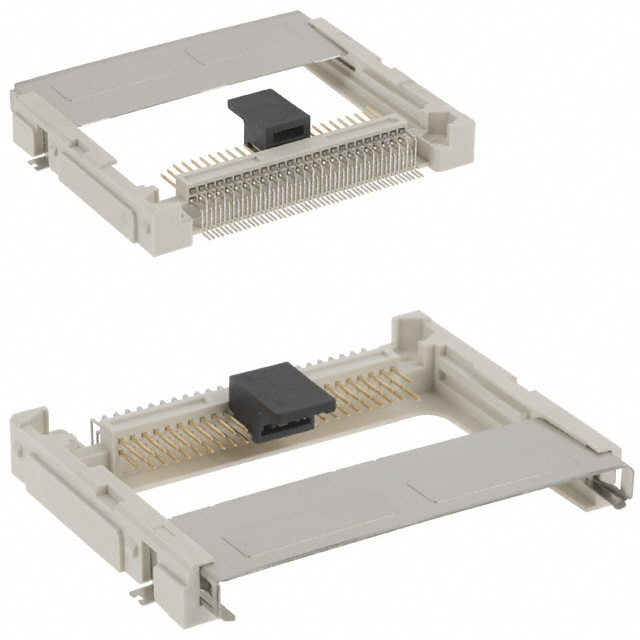

3M CF CARD HEADER, 7E50 SERIES, N7E50-N516RB-40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N7E50-N516RB-40

Active

3M CF CARD HEADER, 7E50 SERIES, N7E50-N516RB-40

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2160	$ 4.72
Newark	Each	1000	$ 6.11

Description

General part information

N7E50 Series

50 Position Card Connector CompactFlash® - Type I, II Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N7E50-N516RB-40	N7E50 Series

Card Type	CompactFlash® - Type I, II	CompactFlash® - Type I, II, CompactFlash® - Type I
Connector Type	-	Connector and Ejector
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Finish Thickness	-	Flash
Ejector Side	-	Right
Features	Card Guide, Board Guide	Card Guide, Board Guide, Cable Guide, Board Lock
Height Above Board	-	0.262 - 0.341 in
Height Above Board	-	6.64 - 8.65 mm
Height Above Board [z]	0.248 "	0.157 - 0.261 in
Height Above Board [z]	6.3 mm	4 - 6.3 mm
Insertion, Removal Method	Pull Out, Push In	Pull Out, Push In, Push Out
Mounting Feature	Reverse - Bottom	Normal, Standard - Top, Reverse - Bottom
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	50	50

N7E50 Series

CONN COMPACT FLASH CARD R/A SMD

Part	Mounting Feature	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Insertion, Removal Method	Card Type	Contact Finish	Height Above Board [z]	Contact Finish Thickness	Connector Type	Ejector Side	Height Above Board [z]
3M N7E50-Q516TC-40	Normal, Standard - Top	0.262 in	6.66 mm	Board Guide, Card Guide	0.76 Ám	30 Áin	50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I, II	Gold
3M N7E50-Q516RA-40-WF	Normal, Standard - Top	0.262 in	6.66 mm	Board Guide, Card Guide	0.38 µm	15 µin	50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I, II	Gold
3M N7E50-7516PG-20	Normal, Standard - Top		6.64 mm	Board Guide, Card Guide			50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I	Gold	0.261 in	Flash
3M N7E50-N516EB-50-HTA	Reverse - Bottom	0.327 in	8.3 mm	Board Guide, Card Guide	0.76 Ám	30 Áin	50	Surface Mount, Right Angle	Push In, Push Out	CompactFlash® - Type I, II	Gold			Connector and Ejector	Right
3M N7E50-D516PK-30-WF	Normal, Standard - Top			Board Guide			50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I	Gold	0.157 "	Flash			4 mm
3M N7E50-N516TC-50-WF	Reverse - Bottom	0.327 in	8.3 mm	Board Guide, Card Guide	0.76 Ám	30 Áin	50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I, II	Gold
3M N7E50-N516RB-40	Reverse - Bottom			Board Guide, Card Guide	0.76 Ám	30 Áin	50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I, II	Gold	0.248 "				6.3 mm
3M N7E50-Q516TH-40-WF	Normal, Standard - Top	0.262 in	6.66 mm	Board Guide, Card Guide	0.38 µm	15 µin	50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I, II	Gold
3M N7E50-7516PG-20-WF	Normal, Standard - Top		6.64 mm	Board Guide, Card Guide			50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I	Gold	0.261 in	Flash
3M N7E50-E516VY-30	Normal, Standard - Top			Board Guide, Card Guide			50	Surface Mount, Right Angle	Pull Out, Push In	CompactFlash® - Type I	Gold	0.157 "	Flash			4 mm
