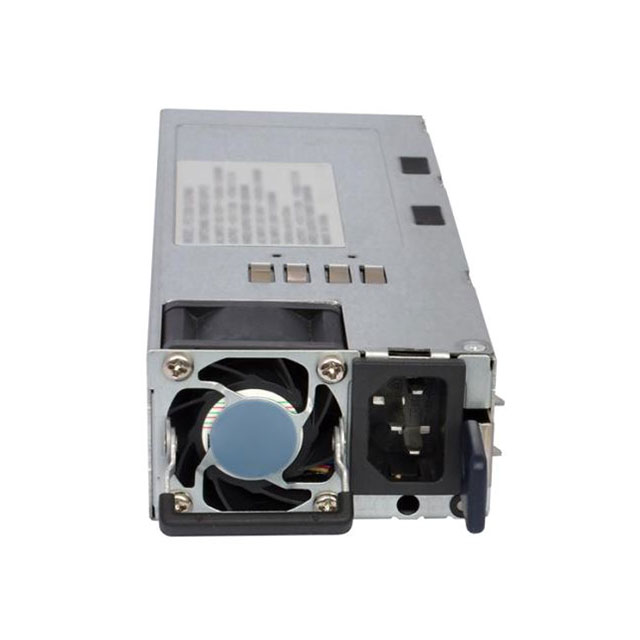

PEC800-12-074NA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 780W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 780W

Technical Specifications

Parameters and characteristics for this part

Specification	PEC800-12-074NA

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	65 A
Efficiency	94 %
Features	Universal Input, Load Sharing, Standby Output, Adjustable Output, Remote Sense
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	780 W
Size / Dimension [x]	185 mm
Size / Dimension [x]	7.28 in
Size / Dimension [y]	73.5 mm
Size / Dimension [y]	2.89 in
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	60950-1, 62368-1
Type	Front End
Voltage - Input [Max]	264 VAC, 300 VDC
Voltage - Input [Min]	90 VAC, 180 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 780W

Part	Power (Watts)	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Standard Number	Voltage - Isolation	Type	Approval Agency	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Current - Output 1
Bel Power Solutions PEC800-12-074NA	780 W	Rack Mount	Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input	1.57 "	73.5 mm	185 mm	2.89 in	7.28 in	40 mm	ITE (Commercial)	94 %	60950-1, 62368-1	3000 V	Front End	CE	12 V	264 VAC, 300 VDC	90 VAC, 180 V	1	65 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC, 180 ~ 300 VDC Input
