FFB.1S.405.CTAC52

Active

LEMO

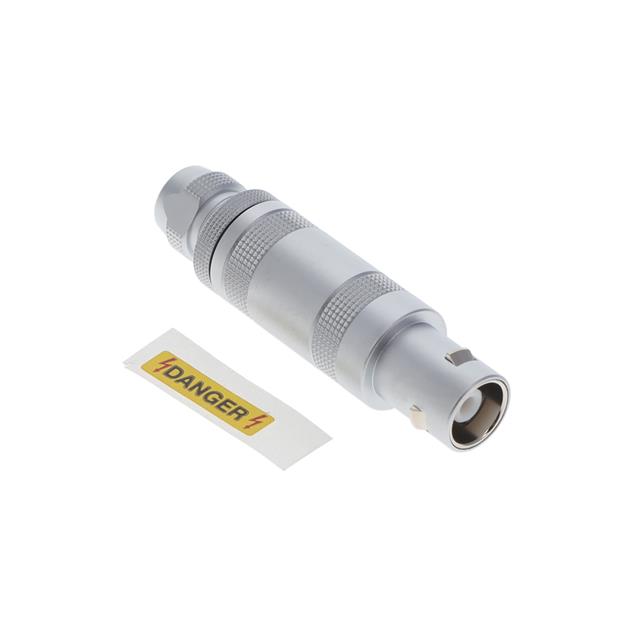

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.1S.405.CTAC52

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.89
		10	$ 36.68
		25	$ 35.10
		50	$ 33.97
		100	$ 32.83
		250	$ 31.02

Description

General part information

FFB.1S Series

1 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFB.1S.405.CTAC52	FFB.1S Series

Accessory Type	-	Back-Nut, Collet
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	400, 223, 187A, 179B, RG-58C, 302, 59B, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.232 - 5.7 mm
Cable Opening	-	0.087 - 0.126 in
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.205 - 0.224 in
Cable Opening	-	5.9 - 6.5 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Center Contact Material	-	Brass
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Plug, Male Pins	Female Sockets, Plug, Male Pins, Male Pin, Insert Shell, Insert
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	4 A	4 - 8 A
Dielectric Material	-	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell, Insert Only, Requires Shell
For Use With/Related Products	-	1S Series Connector
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included
Number of Ports	-	1
Number of Positions	1	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	405	405
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

FFB.1S Series

CONN PLUG FMALE 1P GOLD SLDR CUP

Part	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Insert Material	Number of Positions	Shell Material	Color	Ingress Protection	Current Rating (Amps)	Mounting Type	Orientation	Contact Material	Contact Finish - Mating	Shielding	Connector Type	Shell Finish	Features	Backshell Material, Plating	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Cable Group	Contact Termination	Shield Termination	Connector Style	Housing Color	Center Contact Material	Impedance	Number of Ports	Center Contact Plating	Body Finish	Body Material	Dielectric Material	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [custom]	Material	For Use With/Related Products	Accessory Type
LEMO FFB.1S.405.CTLC32	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	8 A	Free Hanging (In-Line)	Keyed	Bronze	Gold	Shielded	Female Sockets, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C
LEMO FFB.1S.405.CTAC27			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C
LEMO FFB.1S.275.CLAC52			Push-Pull					IP50		Free Hanging (In-Line)					Male Pin, Plug						-55 °C	250 °C	1000	179B, 187A, 223, 302, 400, 59B, RG-58C	Solder	Clamp	Coaxial	Silver	Brass	75 Ohms	1	Gold	Chrome	Brass	Polyetheretherketone (PEEK)
LEMO FFB.1S.250.CTAC32			Push-Pull					IP50		Free Hanging (In-Line)					Male Pin, Plug						-55 °C	250 °C	1000	174, 174A, 178B, 188A, 196A, 316B, RG-122	Solder	Clamp	Coaxial	Silver	Brass	50 Ohms		Gold	Chrome	Brass	Polytetrafluoroethylene (PTFE)
LEMO FFB.1S.405.CLAC32	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Push-Pull	Polyetheretherketone (PEEK)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C														UL94 V-0
LEMO FFB.1S.405.CLAC52			Push-Pull	Polyetheretherketone (PEEK)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C														UL94 V-0	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTLC42			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	8 A	Free Hanging (In-Line)	Keyed	Bronze	Gold	Shielded	Female Sockets, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C																		0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FFB.1S.405.CTAC52			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C															0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTAC57	5.2 mm, 5.7 mm		Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C																						0.205 in, 0.224 in
LEMO FFB.1S.140.LC							Silver																																						Brass	1S Series Connector	Back-Nut, Collet
