DW-21-07-T-S-200-002

Active

Samtec Inc.

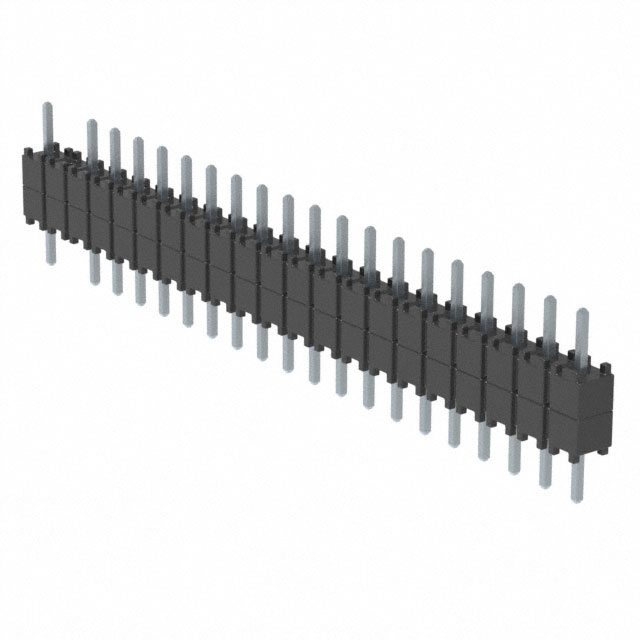

CONN HDR 21POS 0.1 STACK T/H TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 21POS 0.1 STACK T/H TIN

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Color	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Length - Tail [x]	Length - Tail [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Mounting Type	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-21-07-G-S-200	2.54 mm	0.1 in	Black	Gold	0.25 Ám	10 Áin	1	0.11 in	2.794 mm	3.048 mm	0.12 in	21	Through Hole	Solder	10.922 mm	0.43 in
Samtec Inc. DW-21-07-F-D-250	2.54 mm	0.1 in	Black	Gold	0.076 Ám	3 Áin	2	0.11 in	2.794 mm	1.778 mm	0.07 in	42	Through Hole	Solder	10.922 mm	0.43 in	0.1 in	2.54 mm	0.25 in	6.35 mm
Samtec Inc. DW-21-07-T-S-320	2.54 mm	0.1 in	Black	Tin			1	0.11 in	2.794 mm			21	Through Hole	Solder	10.922 mm	0.43 in					0.32 in	8.128 mm
Samtec Inc. DW-21-07-T-Q-200	2.54 mm	0.1 in	Black	Tin			3	0.11 in	2.794 mm	3.048 mm	0.12 in	42	Through Hole	Solder	10.922 mm	0.43 in	0.1 in	2.54 mm
Samtec Inc. DW-21-07-T-S-200-002	2.54 mm	0.1 in	Black	Tin			1	0.11 in	2.794 mm	3.048 mm	0.12 in	21	Through Hole	Solder	10.922 mm	0.43 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.03

General part information

21 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
