CDDFN10-3324P

Active

Bourns Inc.

ULTRA LOW CAPACITANCE TVS DIODE ARRAY /TAPE & REEL - 7" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

ULTRA LOW CAPACITANCE TVS DIODE ARRAY /TAPE & REEL - 7" REEL

Technical Specifications

Parameters and characteristics for this part

Specification	CDDFN10-3324P

Applications	HDMI
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C

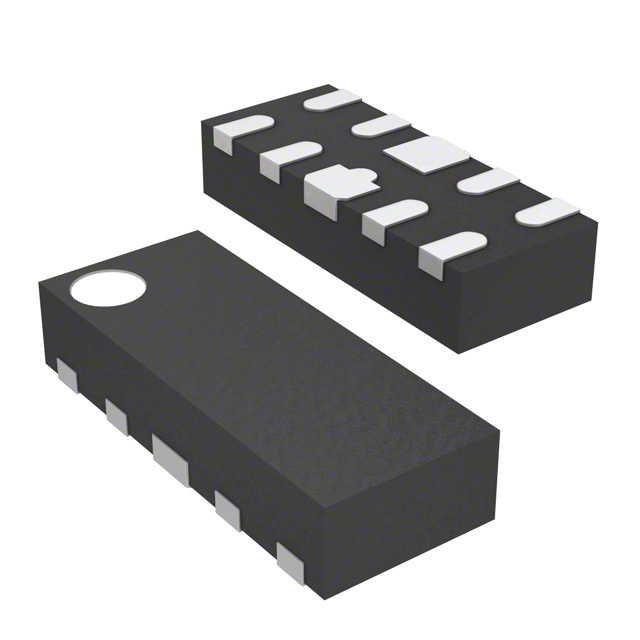

Package / Case	10-UFDFN
Power - Peak Pulse	30 W
Power Line Protection	True
Supplier Device Package	10-DFN (2.5x1)
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	4.5 V
Voltage - Clamping (Max) @ Ipp [Max]	7.5 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Mounting Type	Unidirectional Channels [custom]	Package / Case	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Applications
Bourns Inc. CDDFN10-3324P	Surface Mount	4	10-UFDFN	3.3 V	7.5 V		30 W	4.5 V	4 A	Steering	-55 °C	85 °C	10-DFN (2.5x1)	HDMI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
