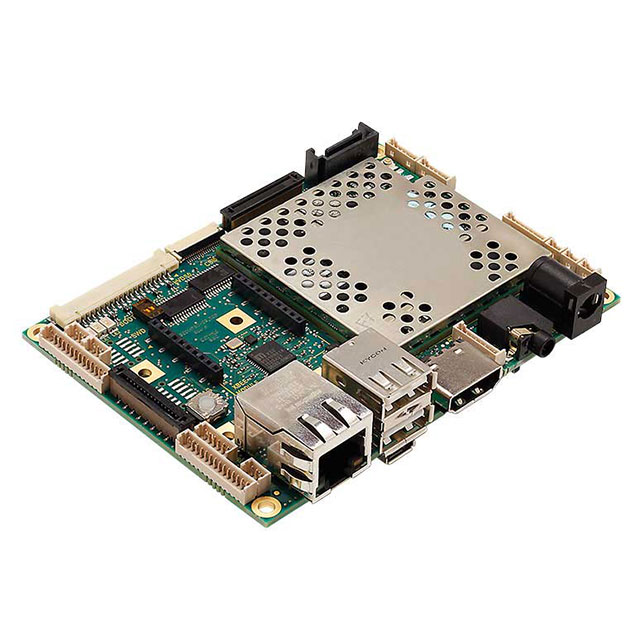

CC-SB-WMX-L76C-1

Unknown

Digi

SBC 800MHZ 2 CORE 512MB/0MB RAM

Search across all available documentation for this part.

Unknown

Digi

SBC 800MHZ 2 CORE 512MB/0MB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC-SB-WMX-L76C-1	CC-SB-WMX Series

Contents	SD Card	SD Card
Core Processor	ARM Cortex-A9, i.MX6DualLite	ARM Cortex-A9, i.MX6DualLite, i.MX6Quad, i.MX 6Dual
Digital I/O Lines	12	12
Ethernet	GbE	GbE
Expansion Site/Bus	XBee RF, Wi-Fi/Bluetooth, Cellular	XBee RF, Wi-Fi/Bluetooth, Cellular, Bluetooth, Wi-Fi
Form Factor	Pico-ITX	Pico-ITX, SBC
Number of Cores	2	2 - 4
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
RAM Capacity/Installed	-	0 - 2 GB
RAM Capacity/Installed	-	-
RS-232 (422, 485)	1	1
Size / Dimension [x]	2.83 "	2.83 "
Size / Dimension [x]	71.88 mm	71.88 mm
Size / Dimension [y]	100.07 mm	100.07 mm
Size / Dimension [y]	3.94 in	3.94 in
Speed	800 MHz	1.2 - 800 MHz
Storage Interface	SD, eMMC	SD, eMMC, SATA
USB	USB 2.0 (3)	USB 2.0 (3), USB 2.0 (4)
Video Outputs	LCD, HDMI	LCD, HDMI, MIPI-DSI, LVDS
Watchdog Timer	-	False

SBC 800MHZ 2 CORE 512MB/0MB RAM

Part	Number of Cores	Form Factor	Video Outputs	RS-232 (422, 485)	Contents	Digital I/O Lines	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Speed	USB	Ethernet	Core Processor	Storage Interface	Expansion Site/Bus	RAM Capacity/Installed	RAM Capacity/Installed
Digi CC-SB-WMX-L76C-1	2	Pico-ITX	HDMI, LCD	1	SD Card	12	85 °C	-40 °C	100.07 mm	2.83 "	3.94 in	71.88 mm	800 MHz	USB 2.0 (3)	GbE	ARM Cortex-A9, i.MX6DualLite	eMMC, SD	Cellular, Wi-Fi/Bluetooth, XBee RF
Digi CC-SB-WMX-KK8D	4	Pico-ITX	HDMI, LCD, LVDS, MIPI-DSI	1		12	85 °C	-40 °C	100.07 mm	2.83 "	3.94 in	71.88 mm	1.2 GHz	USB 2.0 (4)	GbE	ARM Cortex-A9, i.MX6Quad	eMMC, SATA, SD		2 GB	-
Digi CC-SB-WMX-J97C-1	4	Pico-ITX	HDMI, LCD, LVDS, MIPI-DSI	1	SD Card	12	70 °C	-20 C	100.07 mm	2.83 "	3.94 in	71.88 mm	1.2 GHz	USB 2.0 (4)	GbE	ARM Cortex-A9, i.MX6Quad	eMMC, SATA, SD		0 GB, 1 GB
Digi CC-SB-WMX-L87C-N	2	SBC					85 °C	-40 °C					800 MHz			i.MX 6Dual		Bluetooth, Wi-Fi	0 GB, 1 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 800MHz 2 Core 512MB/0MB RAM ARM Cortex-A9, i.MX6DualLite

Technical documentation and resources

No documents available
