119K153-K00L5

Active

Rosenberger

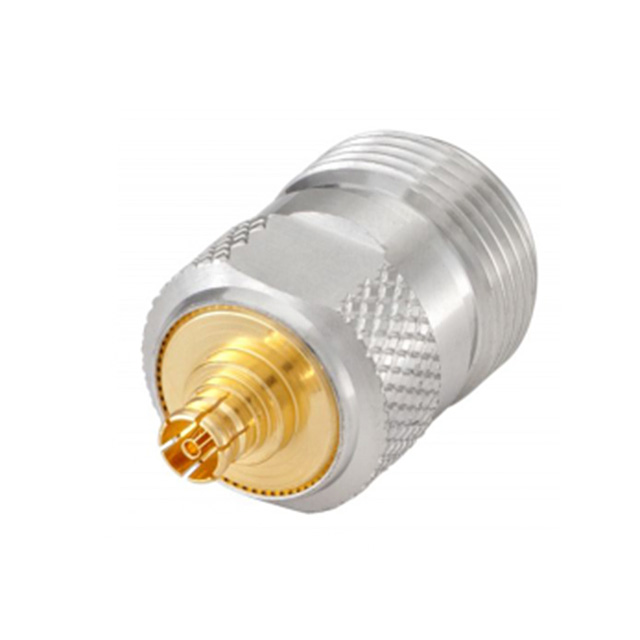

ADAPT PSMP JACK - N JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT PSMP JACK - N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	119K153-K00L5

Adapter Series	N to PSMP
Adapter Type	Jack to Jack
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	PSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Series	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Center Contact Material	Convert To (Adapter End)	Style	Center Gender	Dielectric Material	Adapter Type	Frequency - Max [Max]	Impedance	Center Contact Plating	Conversion Type	Mounting Type	Convert From (Adapter End)
Rosenberger 119K153-K00L5	N to PSMP	Beryllium Copper Brass	155 °C	-55 °C	Snap-On Threaded	Beryllium Copper	Female Socket PSMP Jack	Straight	Female to Female	Polytetrafluoroethylene (PTFE)	Jack to Jack	10 GHz	50 Ohms	Gold	Between Series	Free Hanging (In-Line)	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 55.01

General part information

Adapter Coaxial Connector N Jack, Female Socket To PSMP Jack, Female Socket 50 Ohms
