S6E2CC9J0AGB1000A
ActiveInfineon Technologies
IC MCU 32BIT 1.5MB FLASH 192FBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S6E2CC9J0AGB1000A
ActiveInfineon Technologies
IC MCU 32BIT 1.5MB FLASH 192FBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S6E2CC9J0AGB1000A |
|---|---|
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 2x12b, A/D 32x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 152 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

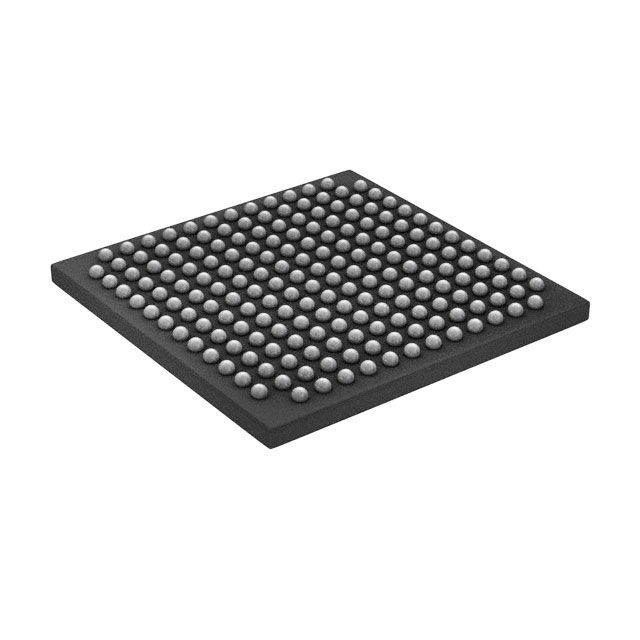

| Package / Case | 192-LFBGA |
| Program Memory Size | 1.5 MB |
| Program Memory Type | FLASH |
| RAM Size | 192 K |
| Speed | 200 MHz |
| Supplier Device Package | 192-FBGA (12x12) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.81 | |
| 10 | $ 10.15 | |||
| 25 | $ 9.49 | |||
| 168 | $ 9.25 | |||
Description
General part information
S6E2CC9 Series
ARM® Cortex®-M4F FM4 S6E2CC Microcontroller IC 32-Bit Single-Core 200MHz 1.5MB (1.5M x 8) FLASH 192-FBGA (12x12)
