FI-TD44SB-E-R750

Obsolete

JAE Electronics

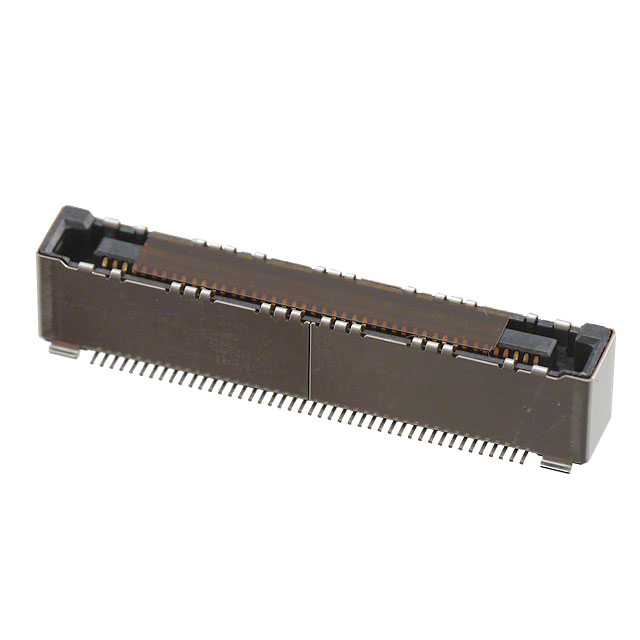

CONN RCPT 44POS 0.05 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 44POS 0.05 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-TD44SB-E-R750

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Current Rating (Amps)	500 mA
Fastening Type	Latch Holder
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Thermoplastic
Mated Stacking Heights	7.35 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Termination	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Insulation Material	Style	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Insulation Height	Insulation Height	Number of Rows	Mounting Type	Number of Positions	Mated Stacking Heights	Fastening Type	Contact Finish - Post	Contact Material	Connector Type	Contact Type	Features	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]
JAE Electronics FI-TD44SB-E-R750	Solder	UL94 V-0	Black	All	Thermoplastic	Board to Cable/Wire	500 mA	0.02 in	0.5 mm	30 Áin	0.76 Ám	85 °C	-40 °C	General Purpose	5.65 mm	0.222 "	1	Surface Mount	44	7.35 mm	Latch Holder	Tin	Copper Alloy	Receptacle	Center Strip Contact	Board Guide Pick and Place Solder Retention	Gold
JAE Electronics FI-TD44SB-LE-R1500	Solder	UL94 V-0	Black	All	Thermoplastic	Board to Cable/Wire	500 mA	0.02 in	0.5 mm	30 Áin	0.76 Ám	85 °C	-40 °C	General Purpose			1	Surface Mount	44	4.4 mm	Latch Holder	Tin	Copper Alloy	Receptacle	Center Strip Contact	Board Guide Pick and Place Solder Retention	Gold	2.7 mm	0.106 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

44 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold
