NMJ0512SAC
ActiveMurata Power Solutions Inc.

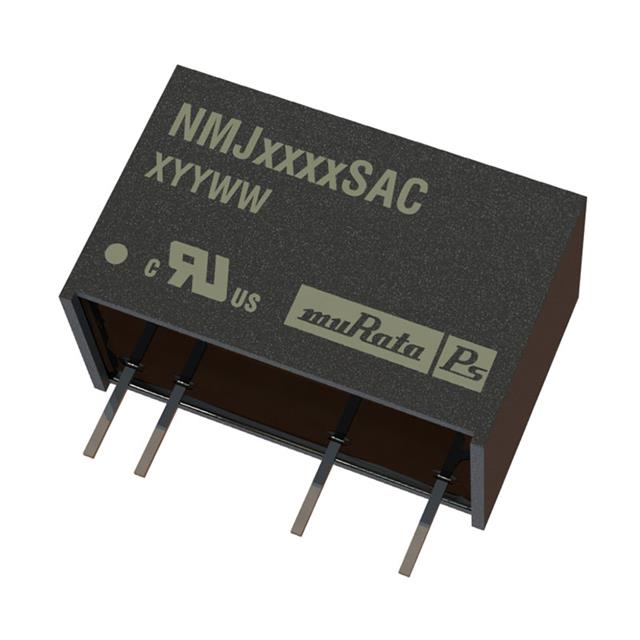

MODULE DC-DC 5VIN 1-OUT 12V 0.083A 1W 4-PIN SIP MODULE TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMJ0512SAC
ActiveMurata Power Solutions Inc.
MODULE DC-DC 5VIN 1-OUT 12V 0.083A 1W 4-PIN SIP MODULE TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMJ0512SAC | NMJ05 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 42 mA |
| Current - Output (Max) [Max] | 83 mA | 42 - 200 mA |
| Efficiency | 71 % | 65 - 71 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 - 2 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads | 7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.6 mm | 19.6 mm |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [y] | 0.39 " | 0.39 " |
| Size / Dimension [y] | 9.9 mm | 9.9 mm |
| Size / Dimension [z] | 0.49 in | 0.49 in |
| Size / Dimension [z] | 12.4 mm | 12.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 5.2 kV | 5.2 kV |
| Voltage - Output 1 | 12 V | 5 - 15 V |
| Voltage - Output 2 | - | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.04 | |
| 5 | $ 13.98 | |||
| 10 | $ 13.88 | |||
| 25 | $ 13.71 | |||
| 50 | $ 13.38 | |||
| 100 | $ 12.71 | |||
| 250 | $ 11.90 | |||
| 500 | $ 11.09 | |||
NMJ05 Series
MODULE DC-DC 5VIN 1-OUT 12V 0.083A 1W 4-PIN SIP MODULE TUBE
| Part | Efficiency | Package / Case | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Isolation | Mounting Type | Applications | Current - Output (Max) [Max] | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMJ0512SAC | |||||||||||||||||||||
Murata Power Solutions Inc. NMJ0515SAC | 71 % | 7-SIP Module, 4 Leads | 66 mA | 0.49 in | 0.39 " | 12.4 mm | 9.9 mm | 19.6 mm | 0.77 in | 1 | -40 °C | 60 °C | Isolated Module | 4.5 V | 5.5 V | 15 V | 5.2 kV | Through Hole | ITE (Commercial) | ||
Murata Power Solutions Inc. NMJ0512SAC | 71 % | 7-SIP Module, 4 Leads | 83 mA | 0.49 in | 0.39 " | 12.4 mm | 9.9 mm | 19.6 mm | 0.77 in | 1 | -40 °C | 60 °C | Isolated Module | 4.5 V | 5.5 V | 12 V | 5.2 kV | Through Hole | ITE (Commercial) | ||
Murata Power Solutions Inc. NMJ0505SAC | 68 % | 7-SIP Module, 4 Leads | 200 mA | 0.49 in | 0.39 " | 12.4 mm | 9.9 mm | 19.6 mm | 0.77 in | 1 | -40 °C | 60 °C | Isolated Module | 4.5 V | 5.5 V | 5 V | 5.2 kV | Through Hole | ITE (Commercial) | ||
Murata Power Solutions Inc. NMJ0505SAC | |||||||||||||||||||||
Murata Power Solutions Inc. NMJ0515SAC | |||||||||||||||||||||
Murata Power Solutions Inc. NMJ0512SC | 65 % | 7-SIP Module, 5 Leads | 42 mA | 0.49 in | 0.39 " | 12.4 mm | 9.9 mm | 19.6 mm | 0.77 in | 2 | -40 °C | 60 °C | Isolated Module | 4.5 V | 5.5 V | 12 V | 5.2 kV | Through Hole | ITE (Commercial) | 42 mA | -12 V |
Murata Power Solutions Inc. NMJ0512SC |
Description
General part information
NMJ05 Series
Isolated Module DC DC Converter 1 Output 12V 83mA 4.5V - 5.5V Input
