L17HTHES4F1C

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17HTHES4F1C

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17HTHES4F1C

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	300 VDC

L17HTHES4 Series

Part	Current Rating (Amps)	Backset Spacing	Backset Spacing	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Connector Style	Material Flammability Rating	Flange Feature	Mounting Type	Dielectric Material	Termination	Contact Finish	Contact Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Number of Positions	Connector Type	Contact Form	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17HTHES4F1CVGA254	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C	Flash	15	Receptacle Female Sockets	Stamped
Amphenol ICC (Commercial Products) L17HTHES4F1TTI	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C	Flash	15	Receptacle Female Sockets	Stamped
Amphenol ICC (Commercial Products) L17HTHES4F1CVGA	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C	Flash	15	Receptacle Female Sockets	Stamped
Amphenol ICC (Commercial Products) L17HTHES4R2C	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C		15	Receptacle Female Sockets	Stamped	15 µin	0.38 µm
Amphenol ICC (Commercial Products) L17HTHES4R4C	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C		15	Receptacle Female Sockets	Stamped	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L17HTHES4F1C	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C	Flash	15	Receptacle Female Sockets	Stamped
Amphenol ICC (Commercial Products) L17HTHES4R4R	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C		15	Receptacle Female Sockets	Stamped	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L17HTHES4R1C	3 A	8.89 mm	0.35 in	300 VDC	DE E	1	High Density	Signal	D-Sub High Density	UL94 V-0	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	Solder	Gold	Copper Alloy	3	-55 °C	150 °C	Flash	15	Receptacle Female Sockets	Stamped

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.30
		10	$ 1.75
		25	$ 1.58
		40	$ 1.50
		80	$ 1.38
		230	$ 1.23
		440	$ 1.15
		945	$ 1.06
		2400	$ 0.97

Description

General part information

L17HTHES4 Series

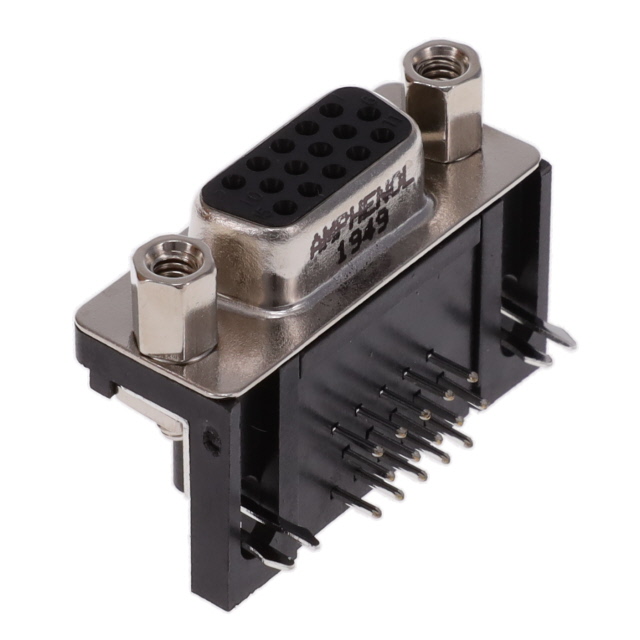

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
