8772 060U1000
ActiveBelden Inc.

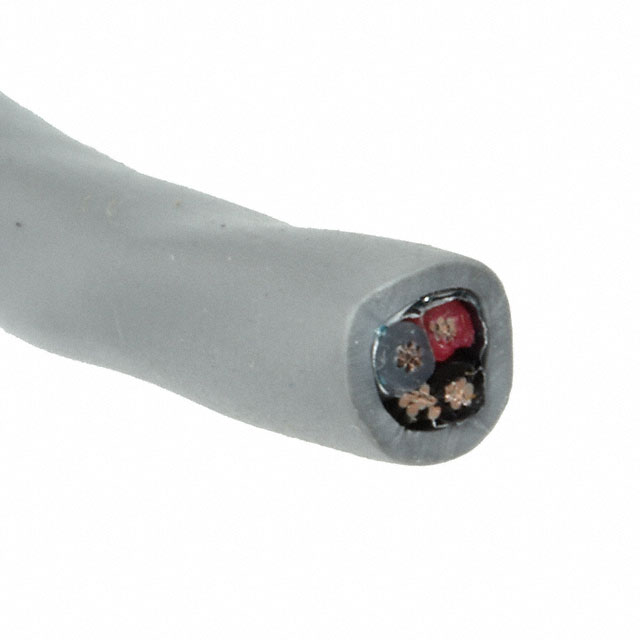

CABLE 3COND 20AWG CHROME SHD
Deep-Dive with AI
Search across all available documentation for this part.
8772 060U1000
ActiveBelden Inc.
CABLE 3COND 20AWG CHROME SHD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8772 060U1000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.54 mm |
| Jacket (Insulation) Diameter [diameter] | 0.218 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.838 mm |
| Jacket (Insulation) Thickness | 0.033 in |
| Jacket Color | Chrome |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2093 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation, Control |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.93 | |
| 2000 | $ 1.83 | |||
| 3000 | $ 1.78 | |||
| 5000 | $ 1.73 | |||
Description
General part information
8772 Series
3 Conductor Multi-Conductor Cable Chrome 20 AWG Foil 1000.0' (304.8m)
