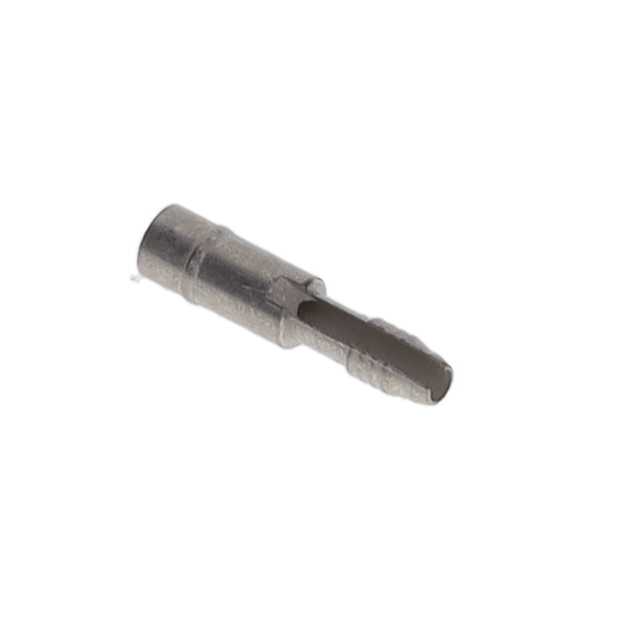

4310-0-31-80-43-14-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
4310-0-31-80-43-14-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4310-0-31-80-43-14-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Board Thickness [Max] | 3.3 mm, 0.13 in |
| Board Thickness [Min] | 2.29 mm, 0.09 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Length - Overall [x] | 6.17 mm |
| Length - Overall [x] | 0.243 in |
| Mounting Hole Diameter [diameter] | 0.4 in |
| Mounting Hole Diameter [diameter] | 10.16 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 2.54 mm |
| Socket Depth | 0.1 " |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.24 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.68 | |||
| 3000 | $ 0.62 | |||
Description
General part information
4310-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Press-Fit
Documents
Technical documentation and resources
No documents available
