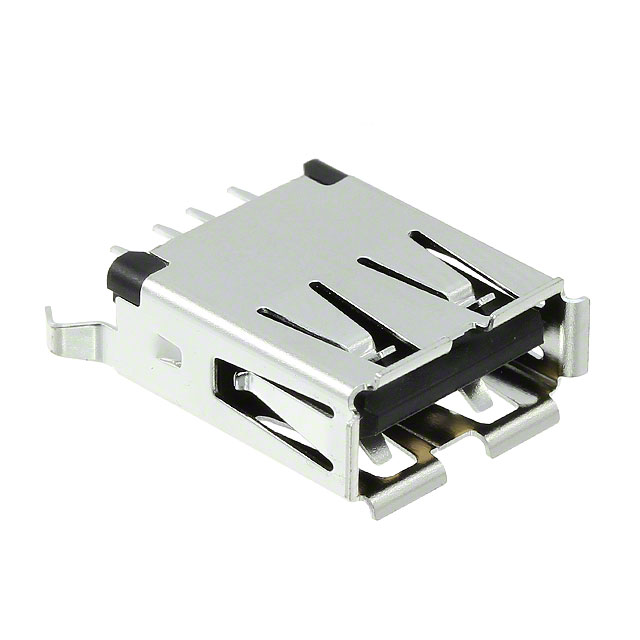

XM7A-0441

Active

Omron Electronics Inc-EMC Div

CONN RCPT USB2.0 TYPEA 4POS VERT

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN RCPT USB2.0 TYPEA 4POS VERT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole

Technical documentation and resources

Specification	XM7A-0441	XM7A Series

Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold	Gold
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Mating Cycles	1500	1500
Mounting Feature	Vertical	Horizontal, Vertical
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Contacts	-	8
Number of Contacts [custom]	4	4
Number of Ports	1	1 - 2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Copper Alloy	Copper Alloy
Shielding	Unshielded	Unshielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

Part	Voltage - Rated	Mounting Type	Contact Finish	Mating Cycles	Termination	Specifications	Shielding	Shell/Shielding Material	Number of Ports	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Mounting Feature	Number of Contacts	Number of Contacts [custom]
Omron Electronics Inc-EMC Div XM7A-0442A	30 VAC	Through Hole, Right Angle	Gold	1500	Solder	USB 2.0	Unshielded	Copper Alloy	2	Receptacle	-40 °C	60 °C	Stacked, USB-A (USB TYPE-A)	Black	Horizontal	8
Omron Electronics Inc-EMC Div XM7A-0441	30 VAC	Through Hole	Gold	1500	Solder	USB 2.0	Unshielded	Copper Alloy	1	Receptacle	-40 °C	60 °C	USB-A (USB TYPE-A)	Black	Vertical		4
