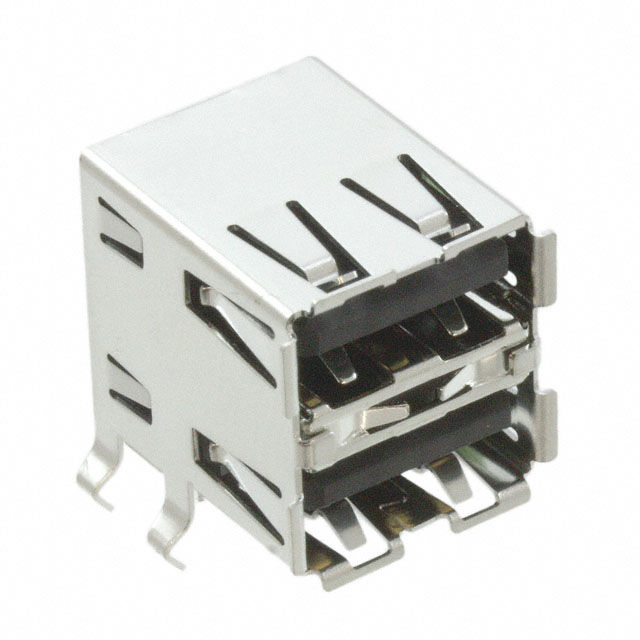

XM7A-0442A

Active

Omron Electronics Inc-EMC Div

CONN RCPT USB2.0 TYPEA STACK R/A

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN RCPT USB2.0 TYPEA STACK R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM7A-0442A	XM7A Series

Connector Type	USB-A (USB TYPE-A), Stacked	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold	Gold
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Mating Cycles	1500	1500
Mounting Feature	Horizontal	Horizontal, Vertical
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Contacts	8	8
Number of Contacts	-	4
Number of Ports	2	1 - 2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Copper Alloy	Copper Alloy
Shielding	Unshielded	Unshielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

CONN RCPT USB2.0 TYPEA STACK R/A

Part	Voltage - Rated	Mounting Type	Contact Finish	Mating Cycles	Termination	Specifications	Shielding	Shell/Shielding Material	Number of Ports	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Mounting Feature	Number of Contacts	Number of Contacts [custom]
Omron Electronics Inc-EMC Div XM7A-0442A	30 VAC	Through Hole, Right Angle	Gold	1500	Solder	USB 2.0	Unshielded	Copper Alloy	2	Receptacle	-40 °C	60 °C	Stacked, USB-A (USB TYPE-A)	Black	Horizontal	8
Omron Electronics Inc-EMC Div XM7A-0441	30 VAC	Through Hole	Gold	1500	Solder	USB 2.0	Unshielded	Copper Alloy	1	Receptacle	-40 °C	60 °C	USB-A (USB TYPE-A)	Black	Vertical		4
