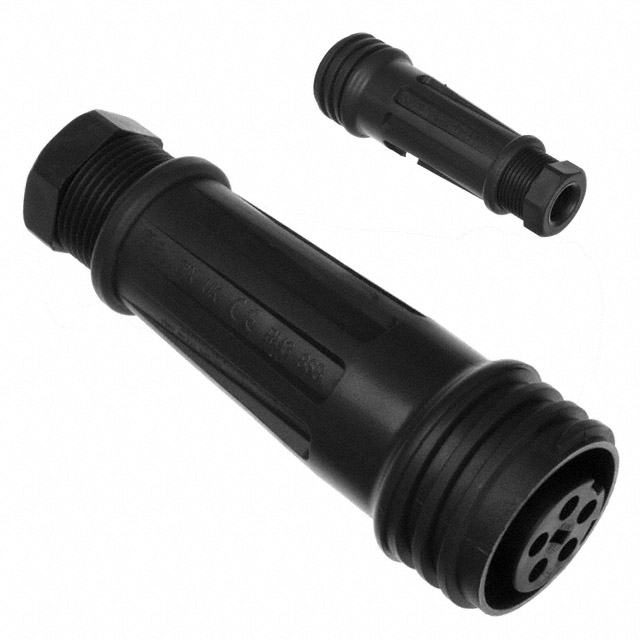

EXP-0921/05/S

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, EXPLORA SERIES, RECEPTACLE, 5, SOCKET, SCREW, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXP-0921/05/S

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, EXPLORA SERIES, RECEPTACLE, 5, SOCKET, SCREW, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-0921/05/S

Applications	Industrial
Backshell Material, Plating	Polyester
Cable Opening [Max] [custom]	15 mm
Cable Opening [Max] [custom]	0.591 in
Cable Opening [Min] [custom]	13 mm
Cable Opening [Min] [custom]	0.512 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	18 A
Features	Trailing Neutral, Backshell, UV Resistant
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

EXP-0921 Series

Part	Contact Material	Orientation	Mounting Type	Material Flammability Rating	Termination	Shielding	Primary Material	Contact Finish - Mating	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Voltage Rating	Ingress Protection	Number of Positions	Applications	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Connector Type	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-0921/02/P	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	600 VAC	IP68 - Dust Tight Waterproof	2	Industrial	Polyester	55 °C	-20 C	Polyester	Male Pins Receptacle	18 A
BULGIN LIMITED EXP-0921/04/S	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	600 VAC	IP68 - Dust Tight Waterproof		Industrial	Polyester	55 °C	-20 C	Polyester	Receptacle Female Sockets	18 A	1	3	4
BULGIN LIMITED EXP-0921/07/P	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	430 VAC/DC	IP68 - Dust Tight Waterproof	7	Industrial	Polyester	55 °C	-20 C	Polyester	Male Pins Receptacle	16 A
BULGIN LIMITED EXP-0921/07/S	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	430 VAC/DC	IP68 - Dust Tight Waterproof	7	Industrial	Polyester	55 °C	-20 C	Polyester	Receptacle Female Sockets	16 A
BULGIN LIMITED EXP-0921/05/S	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell Trailing Neutral UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	600 VAC	IP68 - Dust Tight Waterproof	5	Industrial	Polyester	55 °C	-20 C	Polyester	Receptacle Female Sockets	18 A
BULGIN LIMITED EXP-0921/03/P	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	600 VAC	IP68 - Dust Tight Waterproof		Industrial	Polyester	55 °C	-20 C	Polyester	Male Pins Receptacle	18 A		2	3	1
BULGIN LIMITED EXP-0921/10/P	Brass	Keyed	Free Hanging (In-Line)	UL94 V-0	Screw	Unshielded	Plastic	Nickel	Backshell UV Resistant	13 mm	15 mm	0.512 in	0.591 in	Black	250 VAC	IP68 - Dust Tight Waterproof	10	Industrial	Polyester	55 °C	-20 C	Polyester	Male Pins Receptacle	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.34
		10	$ 60.88
		25	$ 58.54
		50	$ 56.59
		100	$ 53.47
Newark	Each	1	$ 68.36
		10	$ 61.39
		25	$ 58.60
		50	$ 54.97
		100	$ 52.46
		250	$ 48.83

Description

General part information

EXP-0921 Series

5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
