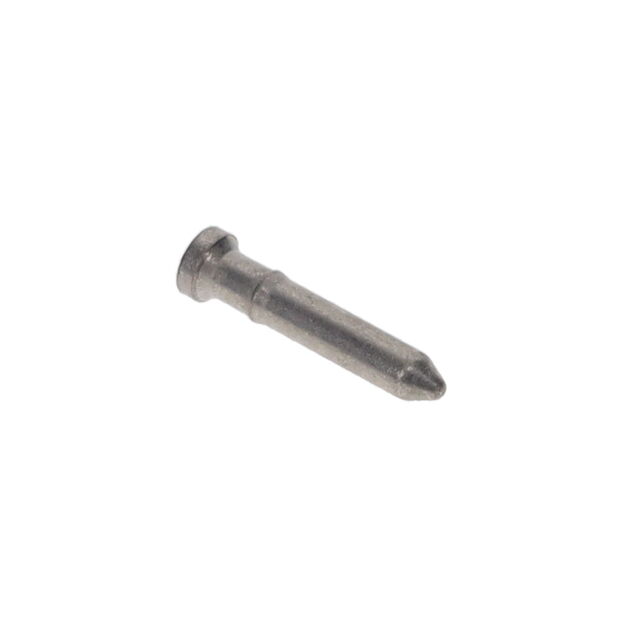

9225-0-15-80-10-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPin Receptacles (metric)
9225-0-15-80-10-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
DocumentsPin Receptacles (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 9225-0-15-80-10-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.017 in |
| Accepts Pin Diameter [Max] | 0.43 mm |
| Accepts Pin Diameter [Min] | 0.3 mm |
| Accepts Pin Diameter [Min] | 0.012 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Length - Overall [x] | 0.225 in |
| Length - Overall [x] | 5.72 mm |
| Mounting Hole Diameter [diameter] | 0.99 mm |
| Mounting Hole Diameter [diameter] | 0.039 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.028 in |
| Pin Hole Diameter [diameter] | 0.71 mm |
| Socket Depth | 3.94 mm |
| Socket Depth | 0.155 in |
| Tail Type | No Tail |
| Termination | Press-Fit |
