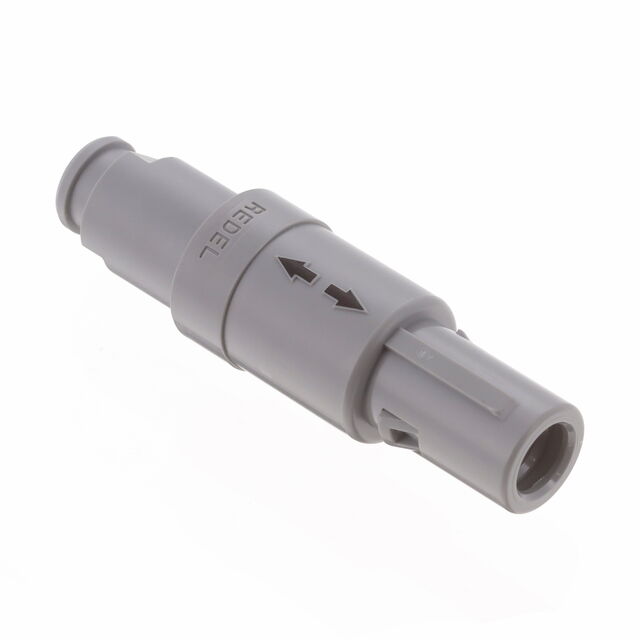

PAJ.M1.0GL.LC65GZ

Active

LEMO

CONN PLUG FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAJ.M1.0GL.LC65GZ

Active

LEMO

CONN PLUG FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.75
		10	$ 33.94
		25	$ 32.47
		50	$ 31.42
		100	$ 30.37
		250	$ 28.70

Description

General part information

PAJ.M1 Series

10 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAJ.M1.0GL.LC65GZ	PAJ.M1 Series

Applications	Medical	Medical
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Green, Gray, Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	2 - 7 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10 - 14
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	J	J
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M10	M10, M12, M14
Shielding	Unshielded	Unshielded

PAJ.M1 Series

CONN PLUG FMALE 10P SOLDER CUP

Part	Features	Fastening Type	Contact Finish - Mating	Ingress Protection	Insert Material	Shell Size - Insert	Mounting Type	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Material	Connector Type	Color	Shielding	Applications	Primary Material	Orientation	Current Rating (Amps)	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PAJ.M1.0GL.LC52V	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M10	Free Hanging (In-Line)	10	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Female Sockets, Plug	Gray, Green	Unshielded	Medical	Plastic	J	3 A	Polysulfone (PSU)	150 °C	-50 °C
LEMO PAJ.M1.4GL.U0818																	Medical
LEMO PAJ.M1.2TL.LC52NZ	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M12	Free Hanging (In-Line)	12	0.157 in	0.205 in	4 mm	5.2 mm	Polyetherimide (PEI)	Female Sockets, Plug	Black	Unshielded	Medical	Plastic	J	7 A	Polyetherimide (PEI)	170 °C	-50 °C
LEMO PAJ.M1.4GL.LC65Z	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M14	Free Hanging (In-Line)	14					Polysulfone (PSU)	Female Sockets, Plug	Gray	Unshielded	Medical	Plastic	J	2 A	Polysulfone (PSU)	150 °C	-50 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAJ.M1.0GL.LC52G	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M10	Free Hanging (In-Line)	10	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Female Sockets, Plug	Gray	Unshielded	Medical	Plastic	J	3 A	Polysulfone (PSU)	150 °C	-50 °C
LEMO PAJ.M1.0GL.LC65GZ	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M10	Free Hanging (In-Line)	10					Polysulfone (PSU)	Female Sockets, Plug	Gray	Unshielded	Medical	Plastic	J	3 A	Polysulfone (PSU)	150 °C	-50 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAJ.M1.0GL.LC39G	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M10	Free Hanging (In-Line)	10					Polysulfone (PSU)	Female Sockets, Plug	Gray	Unshielded	Medical	Plastic	J	3 A	Polysulfone (PSU)	150 °C	-50 °C			2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAJ.M1.4GL.LC65G	Backshell	Detent Lock, Push-Pull	Gold	IP50	Polyetheretherketone (PEEK)	M14	Free Hanging (In-Line)	14					Polysulfone (PSU)	Female Sockets, Plug	Gray	Unshielded	Medical	Plastic	J	2 A	Polysulfone (PSU)	150 °C	-50 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm
