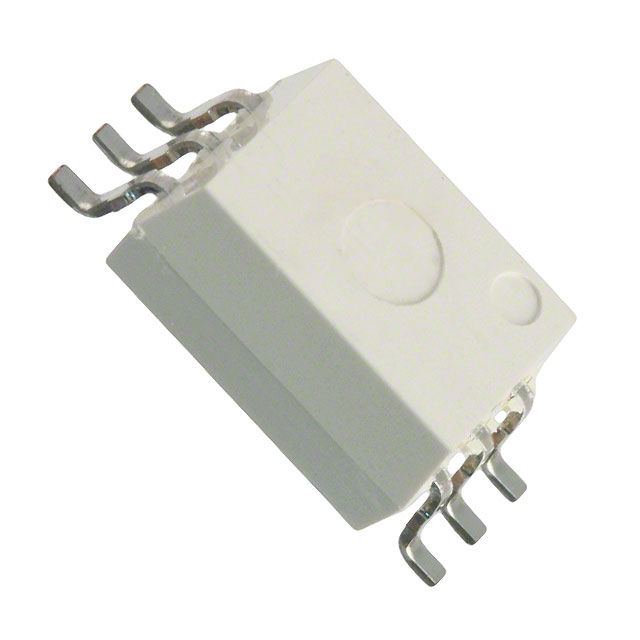

PS9331L-V-AX

Active

CEL

OPTOISO 5KV 1CH GATE DVR 6SDIP

Search across all available documentation for this part.

Active

CEL

OPTOISO 5KV 1CH GATE DVR 6SDIP

Technical Specifications

Parameters and characteristics for this part

Specification	PS9331L-V-AX

Approval Agency	UL, VDE, CSA, SEMKO
Common Mode Transient Immunity (Min) [Min]	50 kV/çs
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output High, Low [custom]	2 A
Current - Output High, Low [custom]	2 A
Current - Peak Output	2.5 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SOIC
Package / Case [x]	0.268 in
Package / Case [y]	6.8 mm
Propagation Delay tpLH / tpHL (Max) [custom]	175 ns
Propagation Delay tpLH / tpHL (Max) [custom]	175 ns
Pulse Width Distortion (Max) [Max]	75 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	40 ns
Supplier Device Package	6-SDIP Gull Wing
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.56 V
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	15 V

OPTOISO 5KV 1CH GATE DVR 6SDIP

Part	Approval Agency	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Technology	Pulse Width Distortion (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case [y]	Package / Case	Package / Case [x]	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]
CEL PS9331L-V-AX	CSA, SEMKO, UL, VDE	175 ns	175 ns	Surface Mount	50 kV/çs	Optical Coupling	75 ns	25 mA	40 ns	40 ns	6-SDIP Gull Wing	1.56 V	6.8 mm	6-SOIC	0.268 in	1	125 °C	-40 °C	2.5 A	2 A	2 A	15 V	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	100	$ 2.64

General part information

2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
