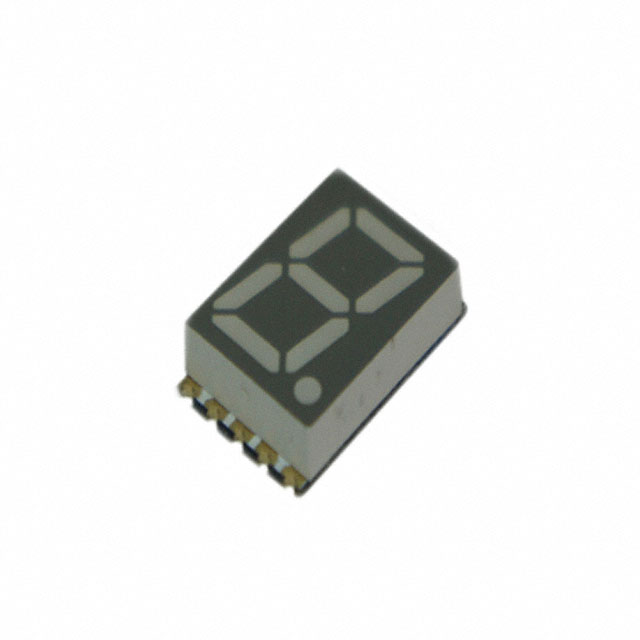

QBSS560R

Active

QT Brightek (QTB)

DISPLAY 7SEG 0.56" SGL RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBSS560R

Active

QT Brightek (QTB)

DISPLAY 7SEG 0.56" SGL RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBSS560R

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	25 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW
Size / Dimension [x]	0.152 "
Size / Dimension [x]	3.85 mm
Size / Dimension [y]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [z]	0.748 "
Size / Dimension [z]	19 mm
Voltage - Forward (Vf) (Typ)	2 V

QBSS560 Series

DISPLAY 7SEG 0.56" SGL RED 10SMD

Part	Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Millicandela Rating	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Number of Characters [custom]	Power Dissipation (Max) [Max]	Display Type	Digit/Alpha Size	Digit/Alpha Size
QT Brightek (QTB) QBSS560R	20 mA	Red	0.152 "	12.5 mm	0.492 "	0.748 "	19 mm	3.85 mm	25 mcd	Common Anode	2 V	10-SMD, No Lead	1	70 mW	7-Segment	0.56 in	14.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.36
	Digi-Reel®	1	$ 3.36
	Tape & Reel (TR)	100	$ 1.95
		500	$ 1.64
		1000	$ 1.50
		2500	$ 1.44
		5000	$ 1.41

Description

General part information

QBSS560 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.748" H x 0.492" W x 0.152" D (19.00mm x 12.50mm x 3.85mm) 10-SMD, No Lead
