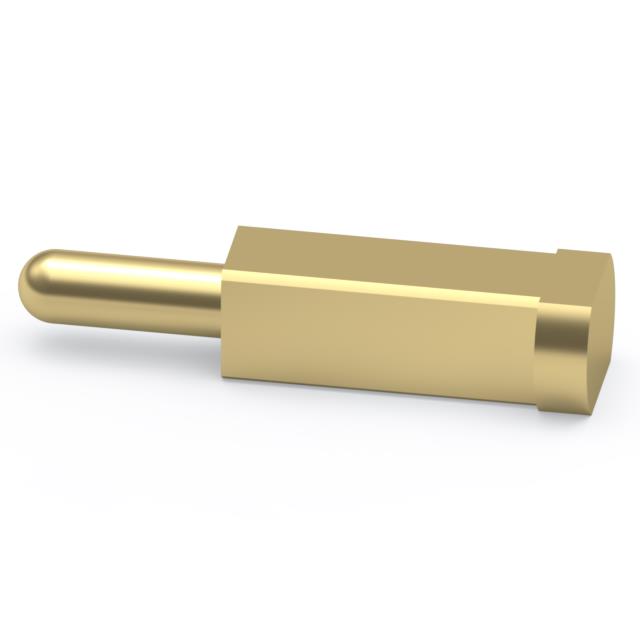

0988-0-15-20-89-14-11-0
ActiveMill-Max Manufacturing Corp.
HORIZONTAL SURFACE MOUNT (HSMT)
Deep-Dive with AI
Search across all available documentation for this part.
0988-0-15-20-89-14-11-0
ActiveMill-Max Manufacturing Corp.
HORIZONTAL SURFACE MOUNT (HSMT)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0988-0-15-20-89-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 8.8 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 8.38 mm |
| Maximum Working Height [Max] | 0.33 in |
| Minimum Working Height [Min] | 5.39 mm |
| Minimum Working Height [Min] | 0.212 " |
| Mounting Type | Surface Mount |
| Operating Force - Initial | 25 gf |
| Operating Force - Mid Compression | 100 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.093 in |
| Pad Layout Dimension [diameter] | 2.36 mm |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height [z] | 6.88 mm |
| Recommended Working Height [z] | 0.271 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.50 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.88 | |||
| 250 | $ 0.80 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.69 | |||
| 3000 | $ 0.62 | |||
Description
General part information
0988-0 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
