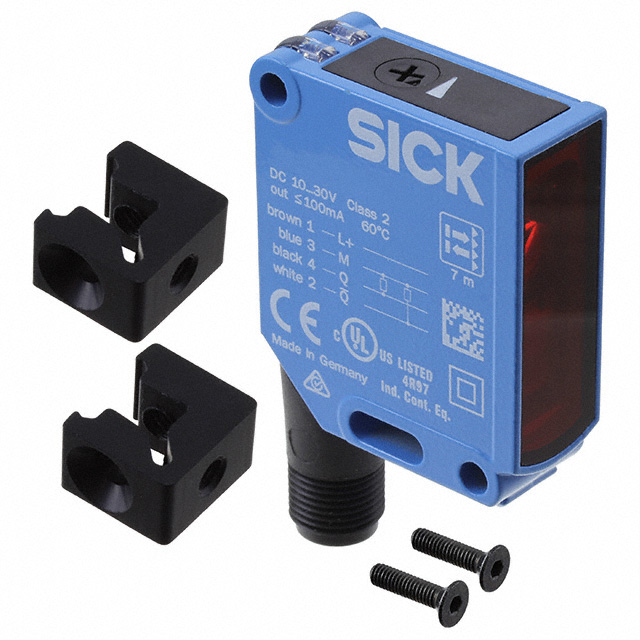

1041436
ActiveSICK, Inc.
SENSOR RETROREFLECTIVE 5M PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1041436
ActiveSICK, Inc.
SENSOR RETROREFLECTIVE 5M PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1041436 |
|---|---|
| Adjustment Type | Adjustable, 5-Turn Potentiometer |
| Connection Method | Connector, 4POS, M12 |
| Ingress Protection | IP69K, IP66, IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 330 µs |
| Sensing Distance [Max] | 196.85 " |
| Sensing Distance [Max] | 500 cm |
| Sensing Distance [Min] | 0 mm |
| Sensing Distance [Min] | 0 " |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
WL12 Series
| Part | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Method | Sensing Distance | Sensing Distance | Adjustment Type | Connection Method | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Light Source | Light Source | Cable Length | Cable Length | Ingress Protection | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 78.74 " | 2 m | Adjustable 5-Turn Potentiometer | Connector M12 | NPN | 30 VDC | 10 VDC | Red | 640 nm | |||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 39.37 in | 1 m | Adjustable 5-Turn Potentiometer | Cable | NPN | 30 VDC | 10 VDC | Red | 640 nm | 78.74 in | 2 m | IP66 IP67 IP69K | ||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 275.591 in | 7 m | Adjustable 5-Turn Potentiometer | Connector M12 | PNP | 30 VDC | 10 VDC | Red | 640 nm | |||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 78.74 " | 2 m | Adjustable 5-Turn Potentiometer | Connector M12 | NPN | 30 VDC | 10 VDC | Red | 640 nm | |||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 196.85 in | 5 m | Adjustable 5-Turn Potentiometer | Connector M12 | PNP | 30 VDC | 10 VDC | Red | 640 nm | IP66 IP67 IP69K | ||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 275.591 in | 7 m | Adjustable 5-Turn Potentiometer | Connector M12 | NPN | 30 VDC | 10 VDC | Red | 640 nm | |||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 196.85 in | 5 m | Adjustable 5-Turn Potentiometer | Cable | NPN | 30 VDC | 10 VDC | Red | 640 nm | 78.74 in | 2 m | IP66 IP67 IP69K | ||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | Adjustable 5-Turn Potentiometer | 4POS Connector M12 | PNP - Dark-ON/Light-ON - Selectable | 30 VDC | 10 VDC | Red LED | IP66 IP67 IP69K | 196.85 " | 0 mm | 500 cm | 0 " | |||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 196.85 in | 5 m | Adjustable 5-Turn Potentiometer | Connector M12 | NPN | 30 VDC | 10 VDC | Red | 640 nm | IP66 IP67 IP69K | ||||||
SICK, Inc. | 330 µs | -40 °C | 60 °C | Retroreflective | 275.591 in | 7 m | Adjustable 5-Turn Potentiometer | Cable | NPN | 30 VDC | 10 VDC | Red | 640 nm | 78.74 in | 2 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 315.88 | |
| 10 | $ 289.55 | |||
Description
General part information
WL12 Series
Retroreflective Optical Sensor 0" ~ 196.850" (0m ~ 5m) PNP - Dark-ON/Light-ON - Selectable
Documents
Technical documentation and resources
