Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.33 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.24 | |||
| 50 | $ 2.21 | |||
| 100 | $ 2.18 | |||
| 250 | $ 2.16 | |||
General part information

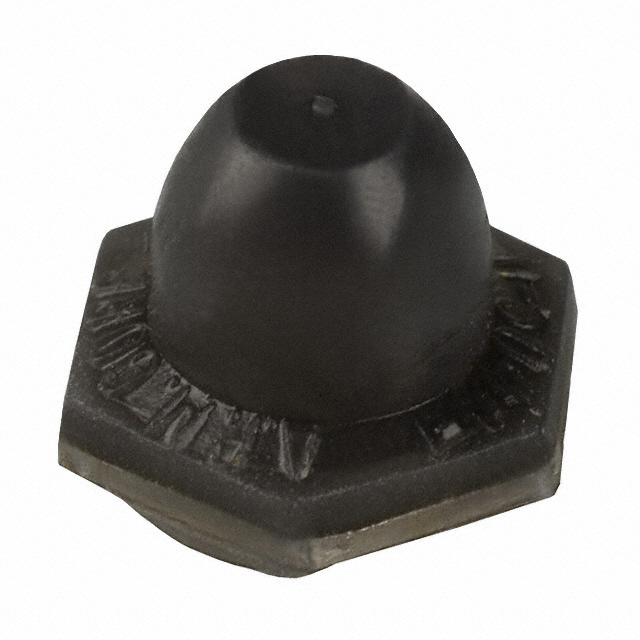

PUSHBUTTON FULL BOOT GRAY
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | N5040 2 | N5040 Series |
|---|---|---|
| Actuator Diameter [diameter] | 4.78 mm | 4.78 mm |
| Actuator Diameter [diameter] | 0.188 in | 0.188 in |
| Color | Gray | Gray |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension [z] | 7.95 mm | 7.95 mm |
| Size / Dimension [z] | 0.313 in | 0.313 in |
| Thread Size | 1/4-40 NS-2B | 1/4-32 NS-2B, 1/4-40 NS-2B |
| Type | Pushbutton, Full Boot | Pushbutton, Full Boot |
SWITCH ACCESSORIES / CAPS ROHS
| Part | Size / Dimension [z] | Size / Dimension [z] | Color | Ingress Protection | Thread Size | Mounting Feature | Material | For Use With/Related Products | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL N5040G 2 | 7.95 mm | 0.313 in | Gray | IP66/IP68 | 1/4-32 NS-2B | Front of Panel | Silicone Rubber | Multiple Series | 4.78 mm | 0.188 in | Pushbutton, Full Boot | 204 °C | -70 °C |
APM HEXSEAL N5040 2 | 7.95 mm | 0.313 in | Gray | IP66/IP68 | 1/4-40 NS-2B | Front of Panel | Silicone Rubber | Multiple Series | 4.78 mm | 0.188 in | Pushbutton, Full Boot | 204 °C | -70 °C |
APM HEXSEAL N5040R 2 | 7.95 mm | 0.313 in | Gray | IP66/IP68 | 1/4-40 NS-2B | Front of Panel | Silicone Rubber | Multiple Series | 4.78 mm | 0.188 in | Pushbutton, Full Boot | 204 °C | -70 °C |
