337-038-559-658
ActiveEDAC Inc.

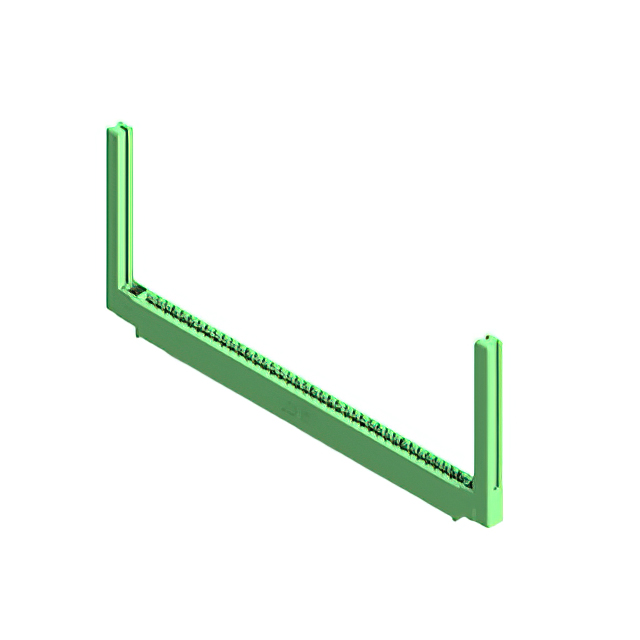

CONN EDGE SGL FMALE 38POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-038-559-658
ActiveEDAC Inc.
CONN EDGE SGL FMALE 38POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-038-559-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
337-038 Series
...
| Part | Material - Insulation | Gender | Color | Read Out | Contact Material | Termination | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature | Mounting Type | Contact Finish | Number of Rows | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Solder | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | Through Hole | Gold | 1 | ||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Wire Wrap | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 1 | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Solder | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Solder Eyelet(s) | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 1 | ||||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Wire Wrap | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Gold | 1 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Wire Wrap | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Gold | 1 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Solder Eyelet(s) | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 1 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Dual | Copper Alloy | Wire Wrap | 19 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 2 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Single | Copper Alloy | Solder Eyelet(s) | 38 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | 1 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Polyester Thermoplastic | Female | Green | Dual | Copper Alloy | Wire Wrap | 19 | 38 | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | Through Hole Right Angle | Gold | 2 | Side Mount Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.23 | |
Description
General part information
337-038 Series
38 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
