2314749

Active

Phoenix Contact

FRONT ADAPTER

Search across all available documentation for this part.

Active

Phoenix Contact

FRONT ADAPTER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2314749	FLKM 16 Series

Convert From (Adapter End)	PLC S7-300	PLC S7-300, Terminal Blocks, Screw Connection
Convert From (Adapter End)	-	1 - 16
Convert To (Adapter End)	Male Pins, Rectangular Connector	Male Pins, Rectangular Connector
Convert To (Adapter End)	2 Rows, 16 Pos	2 - 16 Rows
Mounting Type	Board Mounted	Board Mounted
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	16 AWG	16 AWG

FRONT ADAPTER

Part	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2314749	26 AWG	16 AWG	Board Mounted	PLC S7-300	Male Pins, Rectangular Connector	2 Rows, 16 Pos
Phoenix Contact 2318237			Board Mounted	Screw Connection, Terminal Blocks	Male Pins, Rectangular Connector	2 Rows, 16 Pos	1, 16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.61

General part information

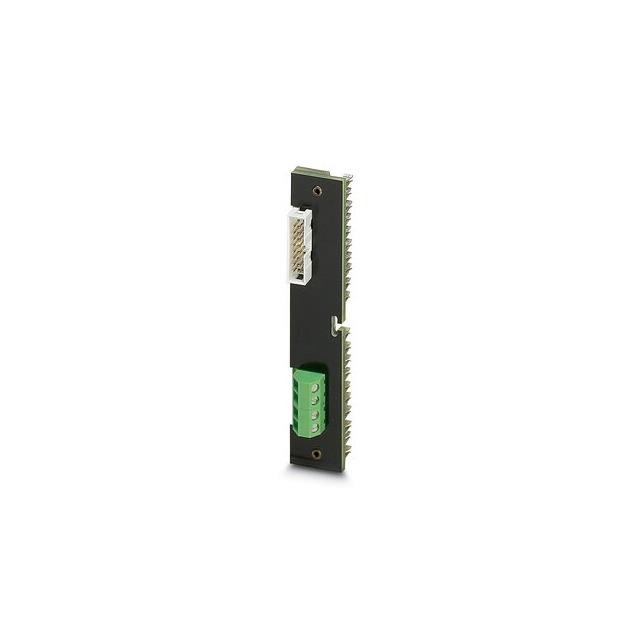

Adapter PLC S7-300 To Rectangular Connector, Male Pins, 16 Pos, 2 Rows

Technical documentation and resources
