MP0033/2

Active

BULGIN LIMITED

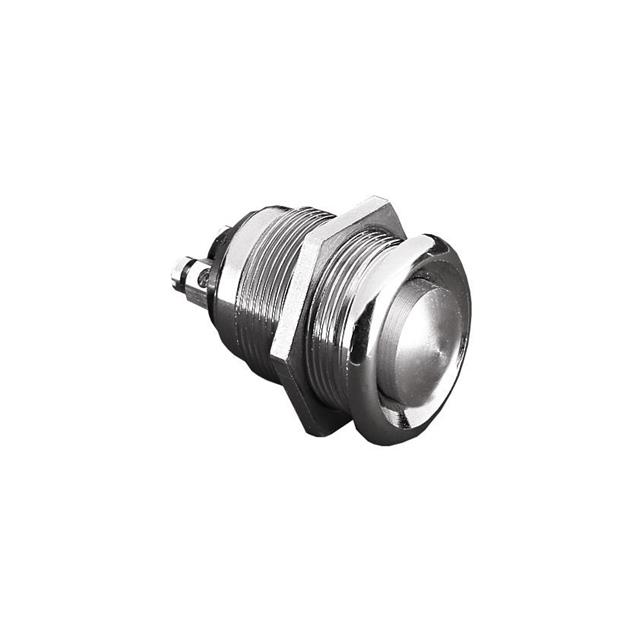

SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 1A 50VAC MOMENTARY PANEL MOUNT SCREW BULK

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 1A 50VAC MOMENTARY PANEL MOUNT SCREW BULK

Technical Specifications

Parameters and characteristics for this part

Specification	MP0033/2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Ingress Protection	Environment Sealed
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	50 V

Part	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Color - Actuator/Cap	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Mounting Type
BULGIN LIMITED MP0033/2	No Marking	SPST-NO	85 °C	-20 C	Environment Sealed	Standard	Silver	Button Round	Screw Terminal	19.2 mm	1 A	Off-Mom	50 V	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 27.89
Newark	Each	1	$ 35.61

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
