CKL13EFW01-001

Active

NKK Switches

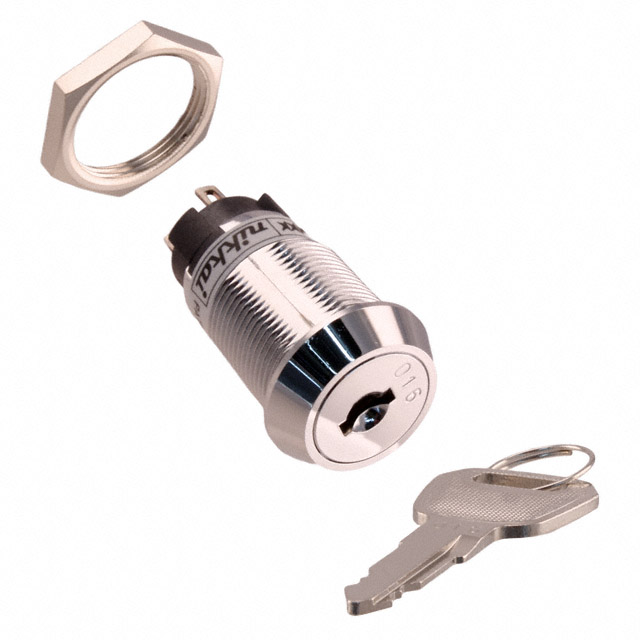

SWITCH KEYLOCK 3POS SPDT 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CKL13EFW01-001

Active

NKK Switches

SWITCH KEYLOCK 3POS SPDT 3A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CKL13EFW01-001

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	SPDT
Contact Finish	Silver
Contact Material	Silver (Ag)
Contact Timing	Non-Shorting
Current Rating (Amps)	3 A
Depth Behind Flange	34.6 mm
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Key Removable Positions	2
Mechanical Life	30000 Steps
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	250 V

CKL13EFW Series

Part	Mechanical Life	Electrical Life	Actuator Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Contact Finish	Key Removable Positions	Features	Contact Timing	Angle of Throw	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Depth Behind Flange	Switch Function	Current Rating (Amps)
NKK Switches CKL13EFW01-025	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01-005	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01-007	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01-015	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01-013	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A
NKK Switches CKL13EFW01-001	30000 Steps	10000 Cycles	Flat Key	Silver (Ag)	70 °C	-25 °C	SPDT	Solder Lug	Silver	2	Epoxy Sealed Terminals	Non-Shorting	45 °	19 mm	250 V	34.6 mm	On-Off-On	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.76
		10	$ 16.82
		25	$ 16.08
		50	$ 15.25
		100	$ 14.69
		250	$ 13.77
		500	$ 12.75
Newark	Each	1	$ 35.59
		5	$ 33.80
		10	$ 31.33
		25	$ 28.58
		50	$ 24.74
		100	$ 23.09
		250	$ 21.03

Description

General part information

CKL13EFW Series

Keylock Switch 3 Position SPDT 3A (AC) 250 VAC DC Panel Mount
