STEVAL-IKR002V5
ActiveSPIRIT1 - LOW DATA RATE TRANSCEIVER - 915 MHZ - FULL KIT
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-IKR002V5
ActiveSPIRIT1 - LOW DATA RATE TRANSCEIVER - 915 MHZ - FULL KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IKR002V5 |
|---|---|
| For Use With/Related Products | SPIRIT1 |
| Frequency | 915 MHz |
| Supplied Contents | Board(s) |
| Type | Transceiver, ISM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 360.00 | |
Description
General part information
STEVAL-IKR002V5 Series

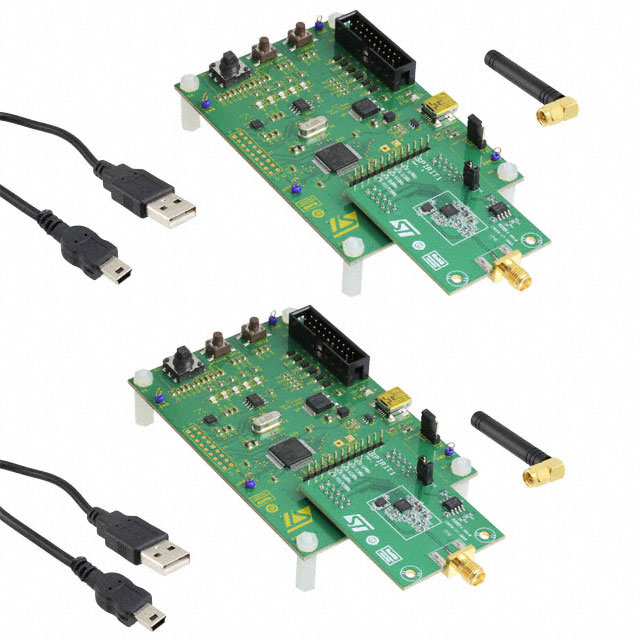

The STEVAL-IKR002V5 development kit includes 2 RF daughterboards based on the SPIRIT1 low power, sub-GHz low data rate transceiver suitable for ISM bands and wireless M-BUS, and 2 motherboards based on the STM32L low power microcontroller to control the daughterboards.
Each motherboard features a USB connector for PC GUI interaction and firmware updates. A JTAG connector allows the development of specific firmware on the microcontroller.
