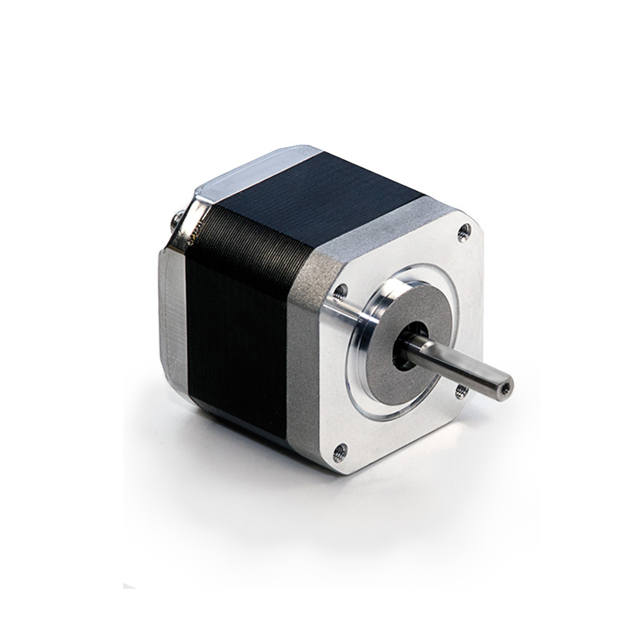

WO-4418F-01

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR

Part	NEMA Frame Size	Termination Style	Voltage - Rated	Steps per Revolution	Coil Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Rotor Inertia	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Features	Step Angle	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]
LIN ENGINEERING WO-4418F-01	17	Wire Leads	24 VDC	200	Bipolar	42.4 mm	1.669 in	42.4 mm	1.669 in	24 mm	0.945 in	0.615 gcm²	0.197 in	5 mm	Round Shaft	1.8 °	0.67 A	190.7 mNm	27 oz-in	1.22 in	31 mm	7.6 Ohms	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Frame Size 17 200.0 Step 670 mA 24VDC
