Connectors, Interconnects
794244-1
ActiveTE Connectivity Raychem Cable Protection

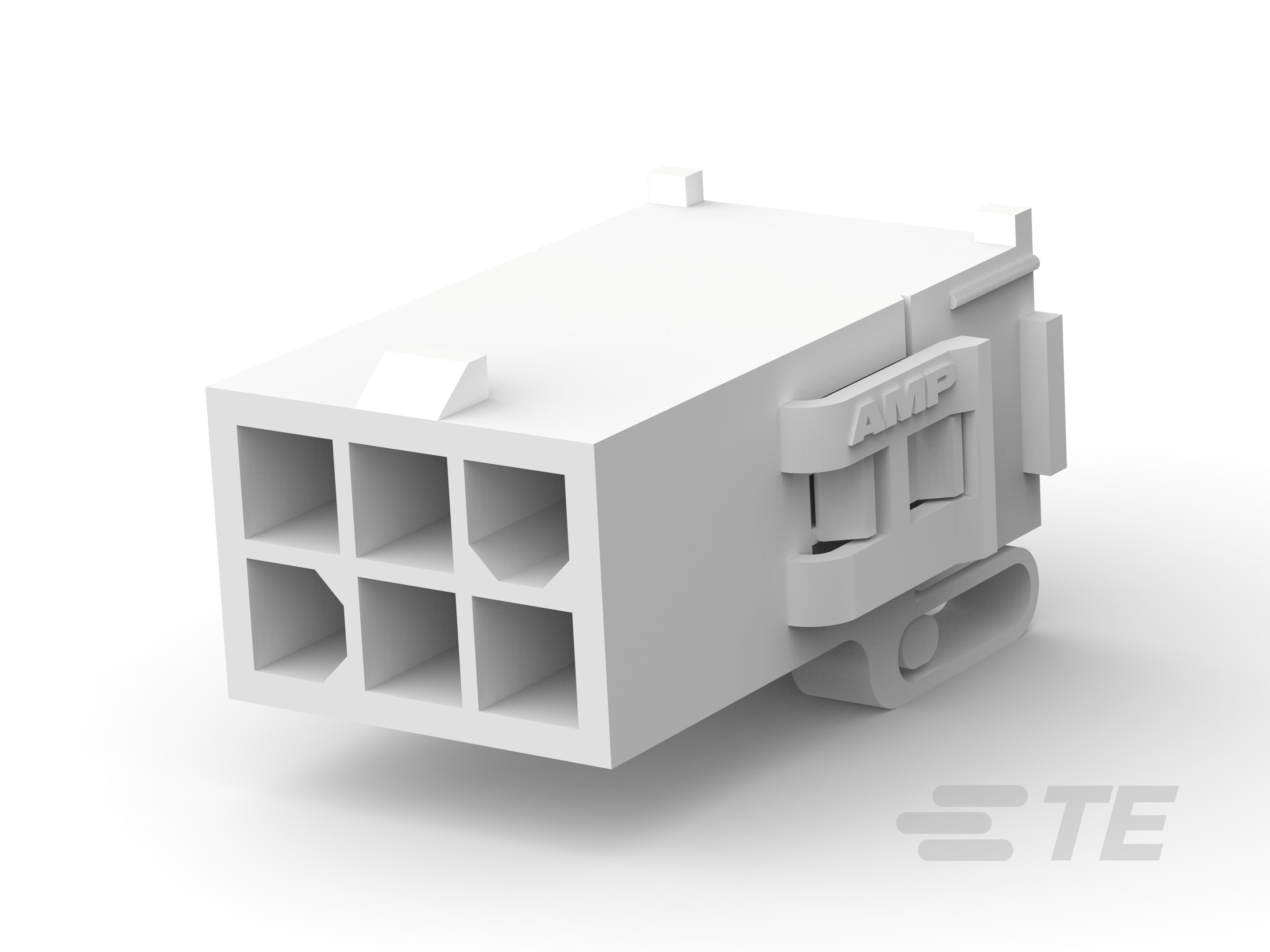

06P MINI UMNL2 CAP HSG UL94V2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
794244-1
ActiveTE Connectivity Raychem Cable Protection
06P MINI UMNL2 CAP HSG UL94V2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 794244-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Pitch [x] | 4.14 mm |
| Pitch [x] | 0.163 in |
| Row Spacing | 4.14 mm |
| Row Spacing | 0.163 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
794244 Series
6 Rectangular Connectors - Housings Receptacle Natural 0.163" (4.14mm)
