163A13629X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A13629X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

Part	Contact Finish	Number of Positions	Contact Finish Thickness	Flange Feature	Features	Contact Type	Number of Rows	Current Rating (Amps)	Voltage Rating	Color	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Shell Size, Connector Layout	Connector Type	Termination	Dielectric Material	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 163A13669X	Gold	50	Flash	4-40 Board Side	Grounding Indents	Signal	3	7.5 A	125 VDC	Black	D-Sub	-55 °C	125 °C	UL94 V-0	Through Hole	5	Male Pins Plug	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
Amphenol CONEC 163A13639X	Gold	15	Flash	4-40 Board Side	Grounding Indents	Signal	2	7.5 A	125 VDC	Black	D-Sub	-55 °C	125 °C	UL94 V-0	Through Hole	2	Male Pins Plug	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
Amphenol CONEC 163A13649X	Gold		Flash	4-40 Board Side	Grounding Indents	Signal	2	7.5 A	125 VDC	Black	D-Sub	-55 °C	125 °C	UL94 V-0	Through Hole		Male Pins Plug	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	B DB	3
Amphenol CONEC 163A13629X	Gold	9	Flash	4-40 Board Side	Grounding Indents	Signal	2	7.5 A	125 VDC	Black	D-Sub	-55 °C	125 °C	UL94 V-0	Through Hole		Male Pins Plug	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	DE E	1
Amphenol CONEC 163A13679X	Gold	9	Flash	Board Side (M3)	Grounding Indents	Signal	2	7.5 A	125 VDC	Black	D-Sub	-55 °C	125 °C	UL94 V-0	Through Hole		Male Pins Plug	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	DE E	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

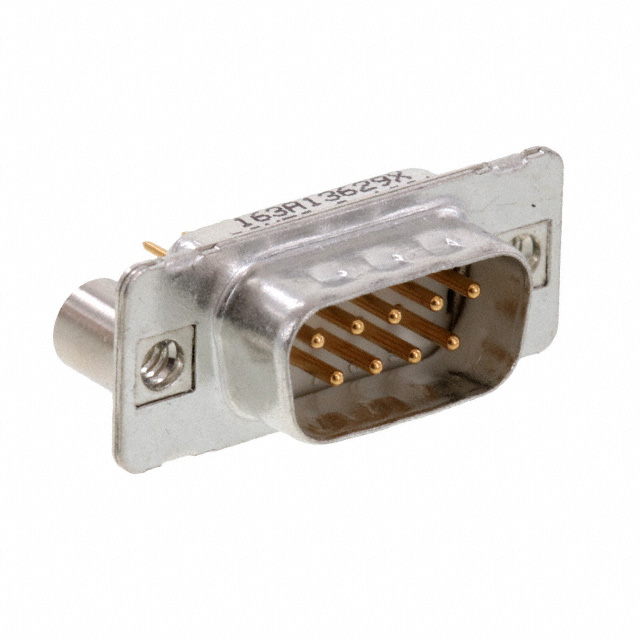

9 Position D-Sub Plug, Male Pins Connector
