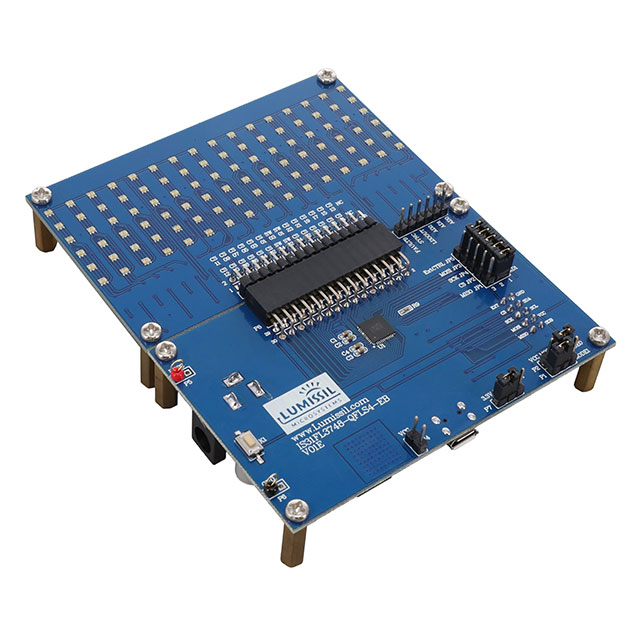

IS31FL3748-QFLS4-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3748

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3748

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IS31FL3748 - 24 Non-Isolated Outputs Dimmable LED Driver Evaluation Board

Technical documentation and resources

No documents available

Specification	IS31FL3748-QFLS4-EB	IS31FL3748 Series

Applications	-	General Purpose
Current - Output / Channel	-	39.6 mA
Current - Output / Channel [custom]	40 mA	40 mA
Dimming	-	PWM
Features	Dimmable	Dimmable
Internal Switch(s)	-	True
Mounting Type	-	Surface Mount
Number of Outputs	-	24
Operating Temperature	-	-40 °C
Operating Temperature	-	125 °C
Outputs and Type	24	24
Outputs and Type	Non-Isolated	Non-Isolated
Package / Case	-	48-WFQFN Exposed Pad
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	48-QFN (6x6)
Topology	-	Constant Current
Type	-	Linear
Utilized IC / Part	IS31FL3748	IS31FL3748
Voltage - Supply (Max)	-	28 V
Voltage - Supply (Min)	-	4.5 V

Part	Voltage - Supply (Min) [Min]	Voltage - Supply (Max) [Max]	Topology	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output / Channel	Package / Case	Internal Switch(s)	Applications	Supplier Device Package	Number of Outputs	Dimming	Utilized IC / Part	Features	Supplied Contents	Current - Output / Channel [custom]	Outputs and Type	Outputs and Type
Lumissil Microsystems IS31FL3748-QFLS4-TR	4.5 V	28 V	Constant Current	Linear	-40 °C	125 °C	Surface Mount	39.6 mA	48-WFQFN Exposed Pad		General Purpose	48-QFN (6x6)	24	PWM
Lumissil Microsystems IS31FL3748-QFLS4-EB															IS31FL3748	Dimmable	Board(s)	40 mA	24	Non-Isolated
