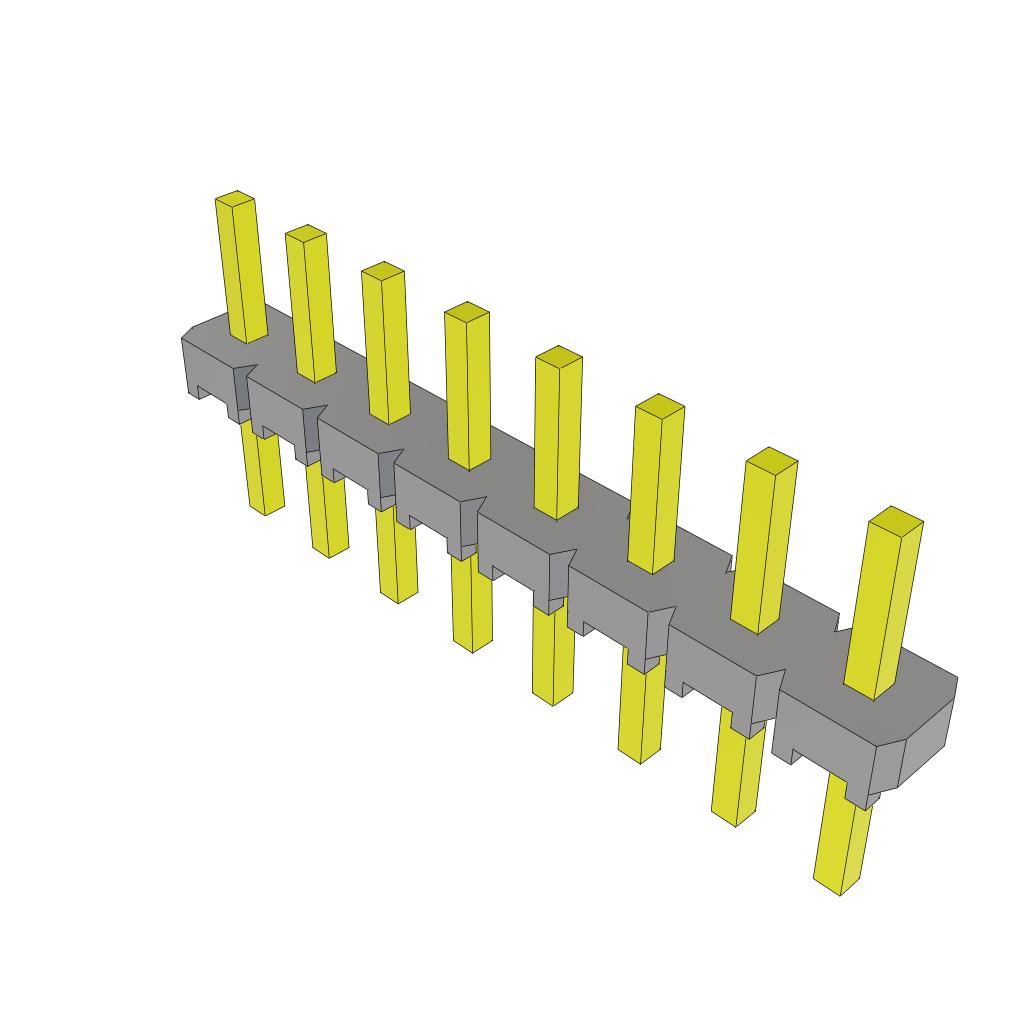

MTLW-108-05-T-S-138

Active

Samtec Inc.

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTLW Datasheet Datasheet +1

MTLW-108-05-T-S-138

Active

Samtec Inc.

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsMTLW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTLW-108-05-T-S-138

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post [x]	3.48 mm
Contact Length - Post [x]	0.137 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTLW-108 Series

Headers & Wire Housings .100" Low Profile Variable Post Height Terminal Strip

...

Part	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Style	Current Rating (Amps)	Insulation Color	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Mounting Type	Material Flammability Rating	Connector Type	Insulation Material	Contact Shape	Shrouding	Number of Positions	Contact Material	Number of Rows	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. MTLW-108-05-T-S-138	0.06 in	1.52 mm	105 ░C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm	3.48 mm	0.137 in	8.51 mm	0.335 in	0.138 in	3.5 mm	Tin	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	8	Phosphor Bronze	1	All
Samtec Inc. MTLW-113-08-G-D-180	0.06 in	1.52 mm	125 °C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm	7.37 mm	0.29 "	13.46 mm	0.53 in	0.18 in	4.57 mm	Gold	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	26	Phosphor Bronze	2	All	2.54 mm	0.1 in	10 çin	0.25 çm	3 µin	0.076 µm	Gold
Samtec Inc. MTLW-106-22-T-S-410
Samtec Inc. MTLW-132-07-T-D-240	0.06 in	1.52 mm	105 ░C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm			10.92 mm	0.43 in		6.1 mm	Tin	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	64	Phosphor Bronze	2	All	2.54 mm	0.1 in						0.24 in	0.13 in	3.3 mm
Samtec Inc. MTLW-115-09-S-D-270
Samtec Inc. MTLW-113-10-S-D-629	0.06 in	1.52 mm	125 °C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm	3.58 mm	0.141 "	21.08 mm	0.83 in	0.629 in	15.98 mm	Tin	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	26	Phosphor Bronze	2	All	2.54 mm	0.1 in	30 Áin	0.76 Ám			Gold
Samtec Inc. MTLW-116-05-G-D-210	0.06 in	1.52 mm	125 °C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm	1.65 mm	0.065 in	8.51 mm	0.335 in	0.21 in	5.33 mm	Gold	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded		Phosphor Bronze	2	All	2.54 mm	0.1 in	10 çin	0.25 çm	3 µin	0.076 µm	Gold
Samtec Inc. MTLW-108-23-S-S-280
Samtec Inc. MTLW-110-07-G-D-230	0.06 in	1.52 mm	125 °C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm	3.56 mm	0.14 in	10.92 mm	0.43 in		5.84 mm	Gold	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	20	Phosphor Bronze	2	All	2.54 mm	0.1 in	10 çin	0.25 çm	3 µin	0.076 µm	Gold	0.23 in
Samtec Inc. MTLW-102-07-L-S-240	0.06 in	1.52 mm	125 °C	-55 °C	Solder	Board to Board Cable	5.2 A	Black	Push-Pull	Male Pin	0.1 in	2.54 mm			10.92 mm	0.43 in		6.1 mm	Tin	Through Hole	UL94 V-0	Header	Liquid Crystal Polymer (LCP)	Square	Unshrouded	2	Phosphor Bronze	1	All			10 çin	0.25 çm			Gold	0.24 in	0.13 in	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25

Description

General part information

MTLW-108 Series

Headers & Wire Housings .100" Low Profile Variable Post Height Terminal Strip

Documents

Technical documentation and resources

MTLW Datasheet

Datasheet
