637-15ABPE
ActiveWakefield-Vette

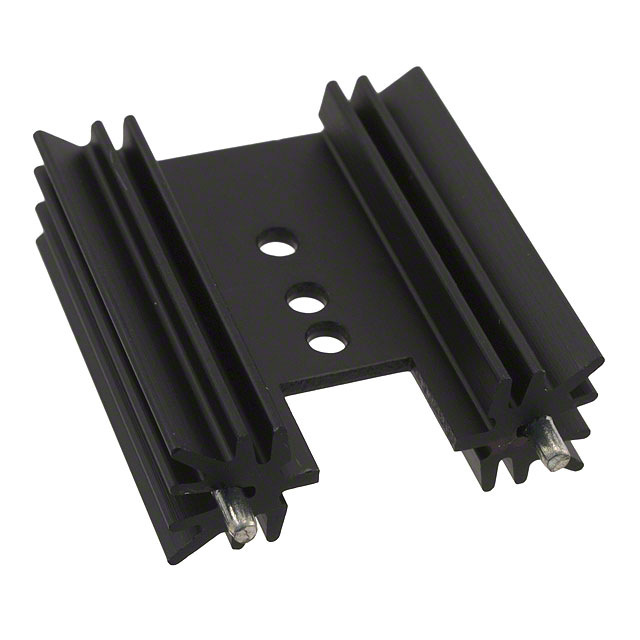

HEATSINK TO-220 VRT MT BLK 1.5"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
637-15ABPE
ActiveWakefield-Vette
HEATSINK TO-220 VRT MT BLK 1.5"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 637-15ABPE |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height [z] | 12.7 mm |
| Fin Height [z] | 0.5 in |
| Length | 1.5 " |
| Length | 38.1 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6 W |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 5.5 °C/W, 200 LFM |
| Type | Board Level, Vertical |
| Width | 34.93 mm |
| Width | 1.375 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.19 | |
| 10 | $ 2.13 | |||
| 25 | $ 2.07 | |||
| 50 | $ 1.96 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.50 | |||
| 5000 | $ 1.47 | |||
Description
General part information
637-15 Series
Heat Sink TO-220 Aluminum 6.0W @ 65°C Board Level, Vertical
