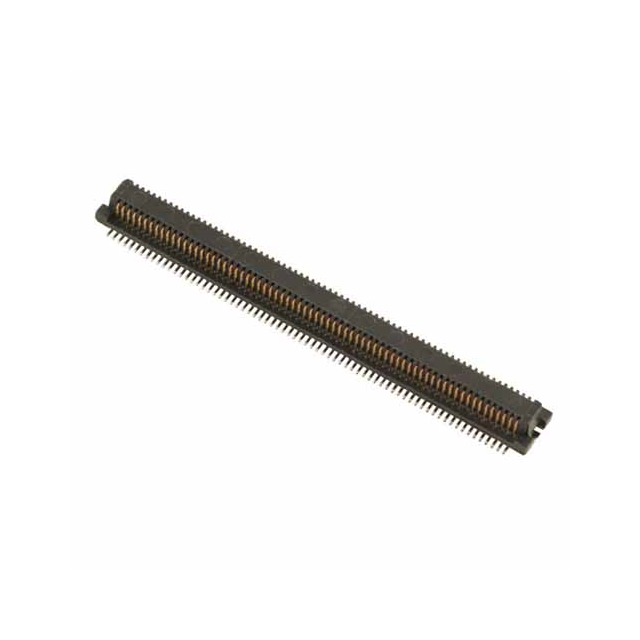

M402VM-3-080-04NR

Active

Harwin Inc.

40+40 POS. MALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

40+40 POS. MALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M402VM-3-080-04NR

Contact Finish	Tin
Contact Finish Thickness	51.2 Áin
Contact Finish Thickness	1.3 Ám
Features	Pick and Place, Board Guide, Solder Retention
Height Above Board	0.118 in
Height Above Board	3 mm
Mated Stacking Heights	5 mm, 9 mm, 8 mm, 7 mm, 3.5 mm, 4 mm, 10 mm, 11 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features
Harwin Inc. M402VM-3-080-04NR	Tin	3.5 mm 4 mm 5 mm 6 mm 7 mm 8 mm 9 mm 10 mm 11 mm	2	0.118 in	3 mm	80	0.5 mm	0.02 in	Surface Mount	51.2 Áin	1.3 Ám	Board Guide Pick and Place Solder Retention
Harwin Inc. M402VM-3-010-04NR	Tin	3.5 mm 4 mm 5 mm 6 mm 7 mm 8 mm 9 mm 10 mm 11 mm	2	0.118 in	3 mm	10	0.5 mm	0.02 in	Surface Mount	51.2 Áin	1.3 Ám	Board Guide Pick and Place Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Plug, Center Strip Contacts Surface Mount Tin
