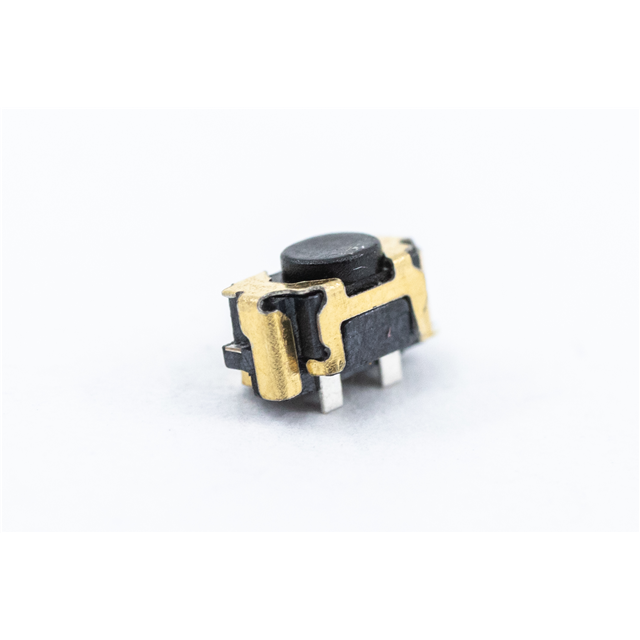

TL4115AF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TL4115AF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL4115AF160Q |
|---|---|
| Actuator Height off PCB, Vertical [z] | 2.6 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 600000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 4.5 mm |
| Outline [y] | 2.2 mm |
| Switch Function | On-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.41 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.41 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 4400 | $ 0.20 | ||
| 8800 | $ 0.19 | |||
| 13200 | $ 0.19 | |||
Description
General part information
TL4115 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
