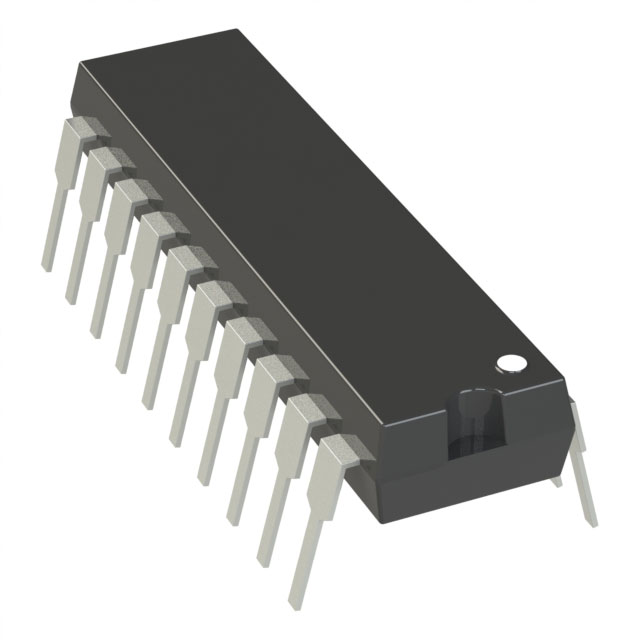

PIC16LF1509-E/P
ActiveMicrochip Technology
8-BIT, FLASH, 20 MHZ, RISC MICROCONTROLLER, PDIP20, 0.300 INCH, LEAD FREE, PLASTIC, DIP-20
Deep-Dive with AI
Search across all available documentation for this part.
PIC16LF1509-E/P
ActiveMicrochip Technology
8-BIT, FLASH, 20 MHZ, RISC MICROCONTROLLER, PDIP20, 0.300 INCH, LEAD FREE, PLASTIC, DIP-20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC16LF1509-E/P | PIC16F1509 Series |
|---|---|---|
| Connectivity [custom] | SPI, I2C, LINbus, UART/USART | SPI, I2C, LINbus, UART/USART |
| Core Processor | PIC | PIC |
| Core Size | 8-Bit | 8-Bit |
| Data Converters [custom] | 5 b, 10 b | 5 - 10 b |
| Data Converters [custom] | 12, 1 | 1 - 12 |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of I/O | 17 | 17 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 20-DIP | 20-SOIC, 20-SSOP, 20-DIP, 20-VFQFN Exposed Pad, 20-UFQFN Exposed Pad |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | - | 0.209 - 7.5 mm |
| Program Memory Size | 14 KB | 14 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size [custom] | 8 | 8 |
| RAM Size [custom] | 512 | 512 |
| Speed | 20 MHz | 20 MHz |
| Supplier Device Package | 20-PDIP | 20-SOIC, 20-SSOP, 20-PDIP, 20-QFN (4x4), 20-UQFN (4x4) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 - 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V | 1.8 - 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 352 | $ 1.84 | |
| 396 | $ 1.83 | |||
| 748 | $ 1.81 | |||
| 1760 | $ 1.80 | |||
| 3520 | $ 1.78 | |||
| Digikey | Tube | 374 | $ 1.76 | |
| Farnell | N/A | 1 | $ 2.09 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.38 | |||
| 100 | $ 1.24 | |||
| Future Electronics | N/A | 22 | $ 1.99 | |
| 66 | $ 1.95 | |||
| 220 | $ 1.92 | |||
| 330 | $ 1.89 | |||
| Master Electronics | N/A | 94 | $ 2.73 | |
| 187 | $ 2.06 | |||
| 281 | $ 1.91 | |||
| 374 | $ 1.88 | |||
| Microchip Direct | TUBE | 1 | $ 2.14 | |
| 25 | $ 1.95 | |||
| 100 | $ 1.76 | |||
| 1000 | $ 1.63 | |||
| 5000 | $ 1.54 | |||
| Microchip Technology Inc | N/A | 1 | $ 2.14 | |
| 25 | $ 1.95 | |||
| 100 | $ 1.76 | |||
| 1000 | $ 1.63 | |||
| 5000 | $ 1.54 | |||
| Mouser Electronics | N/A | 374 | $ 1.76 | |
| Onlinecomponents.com | N/A | 94 | $ 2.73 | |
| 187 | $ 2.06 | |||
| 281 | $ 1.91 | |||
| 374 | $ 1.88 | |||
PIC16F1509 Series
8-BIT, FLASH, 20 MHZ, RISC MICROCONTROLLER, PDSO20, 7.50 MM, LEAD FREE, PLASTIC, SOIC-20
| Part | Program Memory Type | Number of I/O | Speed | Data Converters [custom] | Data Converters [custom] | Package / Case | Package / Case | Connectivity [custom] | Core Processor | Core Size | RAM Size [custom] | RAM Size [custom] | Supplier Device Package | Mounting Type | Oscillator Type | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology PIC16F1509-I/SO | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.295 in, 7.5 mm | 20-SOIC | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SOIC | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | ||
Microchip Technology PIC16F1509-I/SS | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.209 in, 5.3 mm | 20-SSOP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SSOP | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | ||
Microchip Technology PIC16LF1509-E/P | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-DIP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-PDIP | Through Hole | Internal | 14 KB | 3.6 V | 1.8 V | 125 °C | -40 °C | 0.3 in | 7.62 mm | |
Microchip Technology PIC16LF1509T-I/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | |||
Microchip Technology PIC16LF1509T-I/SO | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.295 in, 7.5 mm | 20-SOIC | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SOIC | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | ||
Microchip Technology PIC16LF1509-I/GZ | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-UFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-UQFN (4x4) | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | |||
Microchip Technology PIC16LF1509-E/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 125 °C | -40 °C | |||
Microchip Technology PIC16F1509-E/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 125 °C | -40 °C | |||
Microchip Technology PIC16LF1509-E/SS | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.209 in, 5.3 mm | 20-SSOP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SSOP | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 125 °C | -40 °C | ||
Microchip Technology PIC16F1509T-I/SS | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.209 in, 5.3 mm | 20-SSOP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SSOP | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | ||
Microchip Technology PIC16LF1509T-I/GZ | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-UFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-UQFN (4x4) | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | |||
Microchip Technology PIC16F1509T-I/GZ | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-UFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-UQFN (4x4) | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | |||
Microchip Technology PIC16F1509-E/SO | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.295 in, 7.5 mm | 20-SOIC | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SOIC | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 125 °C | -40 °C | ||
Microchip Technology PIC16F1509-E/P | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-DIP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-PDIP | Through Hole | Internal | 14 KB | 5.5 V | 2.3 V | 125 °C | -40 °C | 0.3 in | 7.62 mm | |
Microchip Technology PIC16F1509-I/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | |||
Microchip Technology PIC16F1509T-I/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | |||
Microchip Technology PIC16F1509-I/GZ | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-UFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-UQFN (4x4) | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | |||
Microchip Technology PIC16LF1509-I/ML | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-VFQFN Exposed Pad | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-QFN (4x4) | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | |||
Microchip Technology PIC16LF1509-I/SS | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.209 in, 5.3 mm | 20-SSOP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SSOP | Surface Mount | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | ||
Microchip Technology PIC16F1509-I/P | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-DIP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-PDIP | Through Hole | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | 0.3 in | 7.62 mm | |
Microchip Technology PIC16F1509T-I/SO | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 0.295 in, 7.5 mm | 20-SOIC | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-SOIC | Surface Mount | Internal | 14 KB | 5.5 V | 2.3 V | 85 °C | -40 °C | ||
Microchip Technology PIC16LF1509-I/P | FLASH | 17 | 20 MHz | 5 b, 10 b | 1, 12 | 20-DIP | I2C, LINbus, SPI, UART/USART | PIC | 8-Bit | 8 | 512 | 20-PDIP | Through Hole | Internal | 14 KB | 3.6 V | 1.8 V | 85 °C | -40 °C | 0.3 in | 7.62 mm |
Description
General part information
PIC16F1509 Series
**Debug Support**• External debug header (AC244051/AC244052) is needed for debug support
• Debug and Programming support is available via PICkit™ 3, and MPLAB® ICD 3
