UCT-50

Active

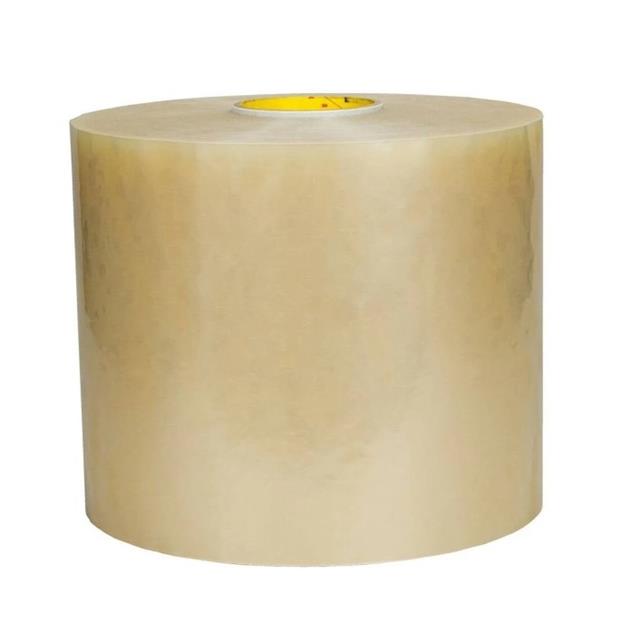

TAPE DBL SIDE CLR 47.20"X109.3YD

Search across all available documentation for this part.

Active

TAPE DBL SIDE CLR 47.20"X109.3YD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UCT-50	UCT Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film, Polyethylene-Terephthalate (PET)
Color	Clear	Clear
Length	328 ft	328 - 656 ft
Length	109.3 yds	109.3 - 218.7 yds
Length	100 m	100 - 200 m
Shelf Life	18 Months	12 - 18 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	69.8 °F
Storage/Refrigeration Temperature	-	21 °C
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Double Coated, Double Sided	Double Coated, Double Sided
Temperature Range	-	10 °C
Temperature Range	-	75 °C
Temperature Range	-	50 °F
Temperature Range	-	167 °F
Thickness	2 mils	1.2 - 2 mils
Thickness	0.002 in	0.0012 - 0.002 in
Thickness	0.051 mm	0.03 - 0.051 mm
Thickness - Adhesive	1.5 mils	1 - 1.5 mils
Thickness - Adhesive	0.0015 in	0.001 - 0.0015 in
Thickness - Adhesive	0.038 mm	0.025 - 0.038 mm
Thickness - Backing, Carrier	0.013 mm	0.013 - 0.102 mm
Thickness - Backing, Carrier	0.0005 in	0.0005 - 0.004 in
Thickness - Backing, Carrier	0.5 mils	0.5 - 4 mils
Usage	Holding, Mounting, Joining	Holding, Mounting, Joining, Bonding
Width [x]	1.2 m	1.2 m
Width [x]	47.2 in	47.2 in

TAPE DBL SIDE CLR 47.20"X109.3YD

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Thickness	Thickness	Thickness	Color	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Width [x]	Width [x]	Usage	Shelf Life Start	Backing, Carrier	Length	Length	Length	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]
3M UCT-50	1.5 mils	0.0015 in	0.038 mm	Acrylic	2 mils	0.002 in	0.051 mm	Clear	18 Months	16 °C, 60 °F	27 °C, 80 °F	0.013 mm	0.0005 in	0.5 mils	Double Coated, Double Sided	1.2 m	47.2 in	Holding, Joining, Mounting	Date of Manufacture	Polyester Film	328 ft	109.3 yds	100 m
3M UCT-30	1 mils	0.001 in	0.025 mm	Acrylic	1.2 mils	0.0012 in	0.03 mm	Clear	12 Months			0.102 mm	0.004 in	4 mils	Double Coated, Double Sided	1.2 m	47.2 in	Bonding	Date of Manufacture	Polyethylene-Terephthalate (PET)	656 '	218.7 yd	200 m	69.8 °F	21 °C	10 °C	75 °C	50 °F	167 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2157.48

General part information

Double Coated, Double Sided Tape Acrylic Adhesive Clear 47.20" (1.20m) X 328' (100m) 109.3 yds
