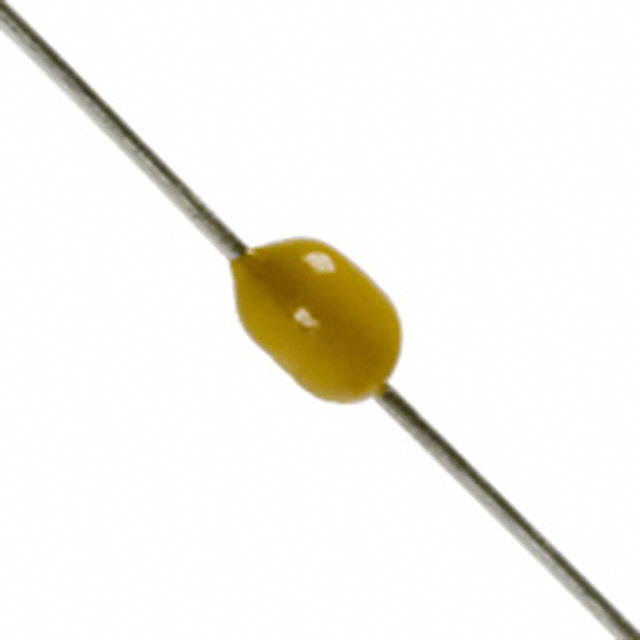

C412C104M1U5TA7200

Active

KEMET

CAP CER 0.1UF 100V Z5U AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC412C104M1U5TA7200 Datasheet

C412C104M1U5TA7200

Active

KEMET

CAP CER 0.1UF 100V Z5U AXIAL

Deep-Dive with AI

DocumentsC412C104M1U5TA7200 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C412C104M1U5TA7200

Applications	General Purpose
Capacitance	100000 pF
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max] [custom]	85 °C
Operating Temperature [Min] [custom]	10 °C
Package / Case	Axial
Size / Dimension [diameter]	3.05 mm
Size / Dimension [diameter]	0.12 "
Size / Dimension [x]	4.32 mm
Size / Dimension [x]	0.17 in
Temperature Coefficient	Z5U
Tolerance	20 %
Voltage - Rated	100 V

C412C Series

Part	Package / Case	Applications	Tolerance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Lead Style	Features	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
KEMET C412C104K5R5TA	Axial	General Purpose	10 %	X7R	-55 °C	125 °C	100000 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight
KEMET C412C223K1R5TA	Axial	General Purpose	10 %	X7R	-55 °C	125 °C	0.022 µF	4.32 mm	0.17 in	3.05 mm	0.12 "	100 V	Through Hole	Straight
KEMET C412C683K5R5TA7200	Axial	General Purpose	10 %	X7R	-55 °C	125 °C	0.068 µF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight
KEMET C412C222J5G5TA	Axial	General Purpose	5 %	C0G NP0	-55 °C	125 °C	2200 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight	Low ESL
KEMET C412C152J5G5TA7200	Axial	General Purpose	5 %	C0G NP0	-55 °C	125 °C	1500 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight	Low ESL
KEMET C412C104K5R5TA7200	Axial	General Purpose	10 %	X7R	-55 °C	125 °C	100000 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight
KEMET C412C223K1R5TA7200	Axial	General Purpose	10 %	X7R	-55 °C	125 °C	0.022 µF	4.32 mm	0.17 in	3.05 mm	0.12 "	100 V	Through Hole	Straight
KEMET C412C222J5G5TA7200	Axial	General Purpose	5 %	C0G NP0	-55 °C	125 °C	2200 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight	Low ESL
KEMET C412C104M1U5TA7200	Axial	General Purpose	20 %	Z5U			100000 pF	4.32 mm	0.17 in	3.05 mm	0.12 "	100 V	Through Hole	Straight		10 °C	85 °C
KEMET C412C334M5U5TA7200	Axial	General Purpose	20 %	Z5U			0.33 µF	4.32 mm	0.17 in	3.05 mm	0.12 "	50 VDC	Through Hole	Straight		10 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.30
		50	$ 0.22
		100	$ 0.18
		500	$ 0.14
		1000	$ 0.12
		2500	$ 0.11
	Tape & Reel (TR)	5000	$ 0.08
