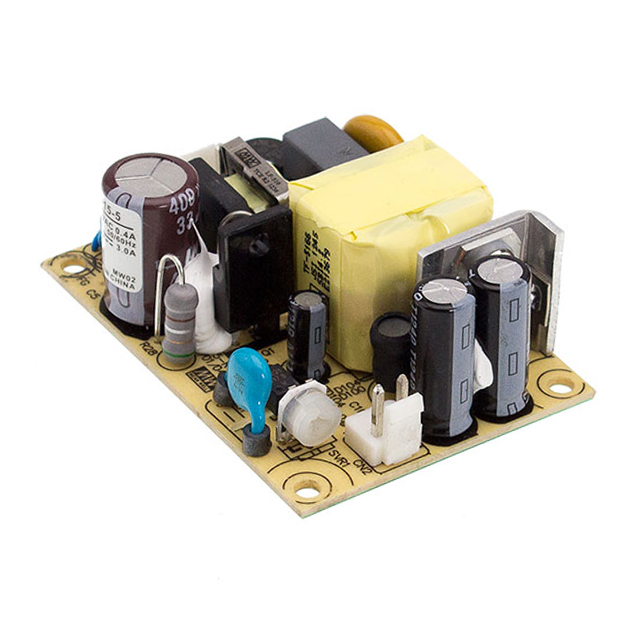

Specification	EPS-15-12

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	1.25 A
Efficiency	82 %
Features	Universal Input, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	15 W
Size / Dimension Height	0.94 in
Size / Dimension Length	2.5 in
Size / Dimension Width	1.8 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	3 kV
Voltage - Output 1	12 V

EPS-15 Series

Part	Minimum Load Required	Voltage - Output 1	Number of Outputs	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Maximum	Efficiency	Current - Output 1	Type	Features	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Approval Agency	Power (Watts)	Voltage - Isolation	Mounting Type	Applications	Operating Temperature (Max)	Operating Temperature (Min)
MEAN WELL USA Inc. EPS-15-27	No	27 V	1	85 VAC	120 V	264 V	370 V	84 %	560 mA	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-5	No	5 V	1	85 VAC	120 V	264 V	370 V	78 %	3 A	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-7.5	No	7.5 V	1	85 VAC	120 V	264 V	370 V	81 %	2 A	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-24	No	24 V	1	85 VAC	120 V	264 V	370 V	83 %	625 mA	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-3.3	No	3.3 V	1	85 VAC	120 V	264 V	370 V	75 %	3 A	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	10 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-12	No	12 V	1	85 VAC	120 V	264 V	370 V	82 %	1.25 A	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-15	No	15 V	1	85 VAC	120 V	264 V	370 V	83 %	1 A	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-48	No	48 V	1	85 VAC	120 V	264 V	370 V	85 %	313 mA	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C
MEAN WELL USA Inc. EPS-15-36	No	36 V	1	85 VAC	120 V	264 V	370 V	85 %	420 mA	Open Frame	Adjustable Output Universal Input	2.5 in	0.94 in	1.8 in	CB CE cURus TUV	15 W	3 kV	Chassis Mount	ITE (Commercial)	70 °C	-30 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EPS-15-12 | Datasheet
