2M1-DP1-T1-B9-M1QE

Active

Carling Technologies

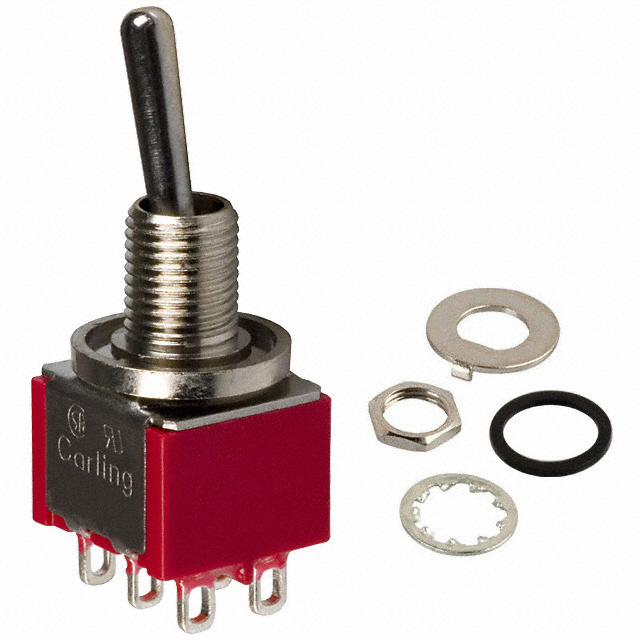

TOGGLE SWITCHES 2M1-DP1-T1-B9-M1QE

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCHES 2M1-DP1-T1-B9-M1QE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switches 2M1HSP1TJBKM1GE

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2M1-DP1-T1-B9-M1QE	2M Series

Accessory Type	-	Locking Ring
Actuator Length	-	10.39 mm
Actuator Length [z]	10.4 mm	10.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	Unthreaded, 1/4-40
Circuit	DPDT	3PDT, SPDT, DPDT
Current Rating (Amps)	5 A	5 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Right Angle, Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 in
Switch Function	On-On	On-On, On-Off-Mom
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

Toggle Switches 2M1HSP1TJBKM1GE

Part	Voltage Rating - AC	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Electrical Life	Features	Voltage Rating - DC	Illumination	Actuator Material	Actuator Length [x]	Actuator Type	Bushing Thread	Ingress Protection	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Length [z]	Accessory Type
Carling Technologies 2M1-3P1-T1-B4-M6GE	125 V	Through Hole, Right Angle	3PDT	-30 ░C	85 °C	5 A	PC Pin	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated	10.39 mm	Standard Round	Unthreaded	IP67 - Dust Tight, Waterproof	On-On
Carling Technologies 2M1-SP5-T1-B1-M1QE	125 V		SPDT	-30 ░C	85 °C	5 A	Solder Lug	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated		Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-Off-Mom	0.25 in	10.4 mm
Carling Technologies 2M1-DP1-T1-B7-M7QE	125 V	Panel Mount, Right Angle, Vertical	DPDT	-30 ░C	85 °C	5 A	PC Pin	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated	10.39 mm	Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-On	0.25 in
Carling Technologies 2M1-HDW15																				Locking Ring
Carling Technologies 2M1-DP1-T1-B9-M1QE	125 V		DPDT	-30 ░C	85 °C	5 A	Solder Lug	50000 Cycles	Epoxy Sealed Terminals	28 V	Non-Illuminated	Brass, Chrome Plated		Standard Round	1/4-40	IP67 - Dust Tight, Waterproof	On-On	0.25 in	10.4 mm
