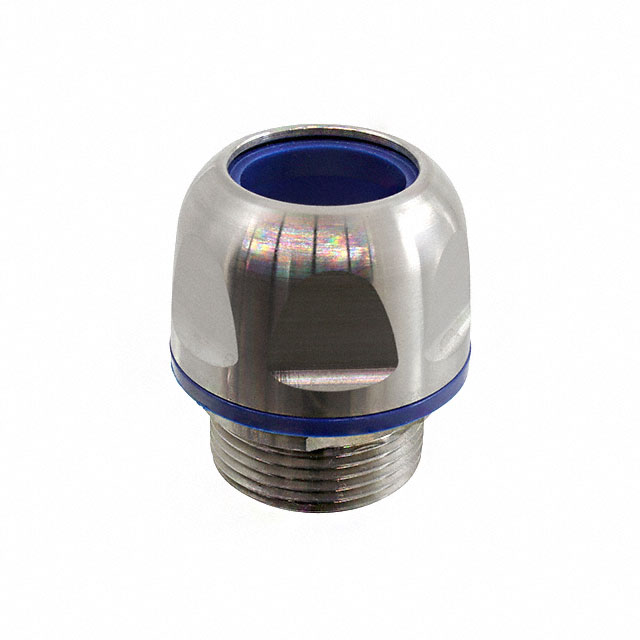

BG225VACP

Active

Pflitsch

CABLE GLAND 14.99-18.03MM M25

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 14.99-18.03MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	BG225VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.71 in
Outside Cable Diameter (Max) [Max] [diameter]	18.03 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.59 in
Outside Cable Diameter (Min) [Min] [diameter]	14.99 mm
Panel Hole Size	0.984 in
Panel Hole Size	25 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Color	Ingress Protection	Includes	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch BG225VACP	0.59 in	14.99 mm	10 mm	0.394 in	M25x1.5	85 °C	-40 °C	Silver	IP66 IP68 IP69	Sealing Ring	0.984 in	25 mm	0.71 in	18.03 mm	Cable Gland	Stainless Steel
Pflitsch BG225VA15TRICP	0.472 in	12 mm	11 mm	0.433 in	M25x1.5	85 °C	-40 °C	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof	Sealing Ring	0.984 in	25 mm	15 mm		Cable Gland	Brass Nickel Plated	0.591 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M25x1.5 Silver
