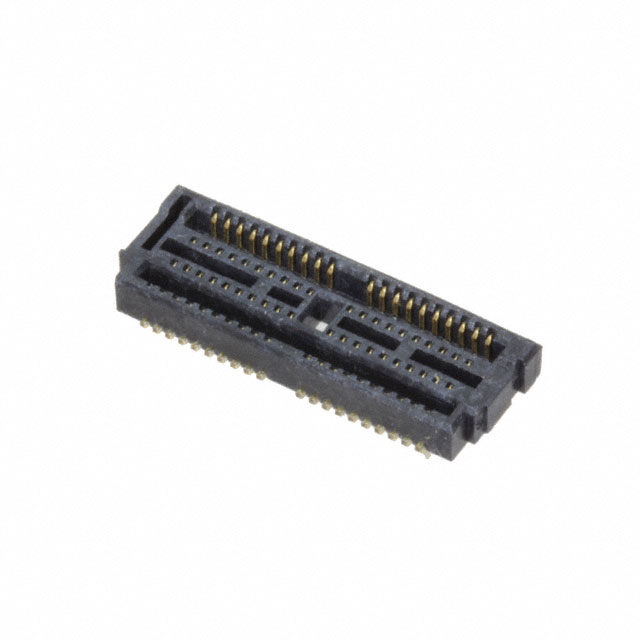

LTH-020-01-G-D-A - LTH-020-01-G-D-A

LTH-020-01-G-D-A

Active
Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.50 mm Low Profile Blade & Beam Terminal StripLTH Datasheet+2
LTH-020-01-G-D-A - LTH-020-01-G-D-A

LTH-020-01-G-D-A

Active
Samtec Inc.

CONN HDR 40POS SMD GOLD

Deep-Dive with AI

Documents0.50 mm Low Profile Blade & Beam Terminal StripLTH Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLTH-020-01-G-D-A
Connector TypeHeader, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide
Height Above Board0.066 in
Height Above Board1.68 mm
Mated Stacking Heights2.31 mm
Mounting TypeSurface Mount
Number of Positions40
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.19
100$ 2.58
250$ 2.45
500$ 2.14
1000$ 2.05
2500$ 1.90

Description

General part information

LTH-020 Series

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
