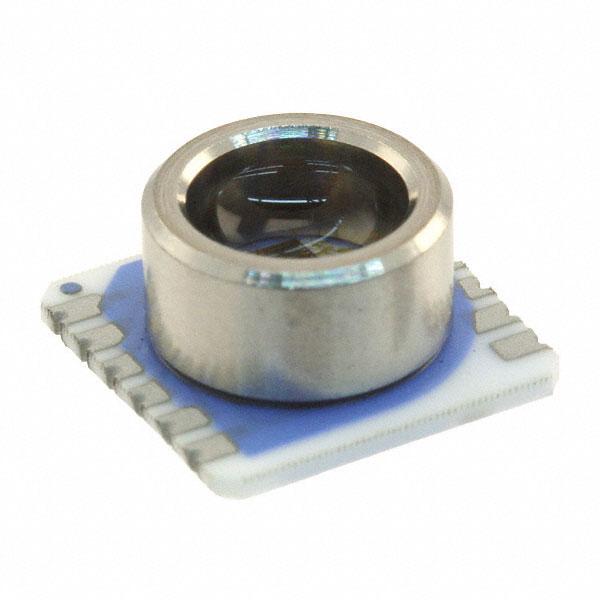

325535009-50

Obsolete

TE Connectivity Measurement Specialties

SENSOR PRESURE 14 BAR 16BIT

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR PRESURE 14 BAR 16BIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor Module

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SENSOR 5.8PSIG 0.12" 16BIT

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Applications	Port Style	Pressure Type	Output	Package / Case	Port Size	Port Size	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Output Type	Features	Accuracy	Accuracy	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties 325536009-00	SMD (SMT) Tab	85 °C	-40 °C	2.2 V	3.6 V	Surface Mount	Board Mount	Barbless	Vented Gauge	16 b	14-SMD Module	Male - Tube	0.12 ", 3 mm	5.8 PSI	40 kPa	-14.5 PSI	-1 bar	SPI
TE Connectivity Measurement Specialties 325534009-50	SMD (SMT) Tab	125 °C	-40 °C	2.2 V	3.6 V		Board Mount	No Port		16 b	Module			15.95 PSI	110 kPa	0.15 PSI	1 kPa	SPI	Temperature Compensated	0.15 kPa	0.022 PSI	1000 kPa	145.04 PSI
TE Connectivity Measurement Specialties 325535009-50	PCB										Module
TE Connectivity Measurement Specialties 325536008-00	SMD (SMT) Tab	85 °C	-40 °C	2.2 V	3.6 V	Surface Mount	Board Mount	Barbless	Vented Gauge	16 b	14-SMD Module	Male - Tube	0.12 ", 3 mm					SPI
