4-1393486-2
ActiveTE Connectivity AMP Connectors

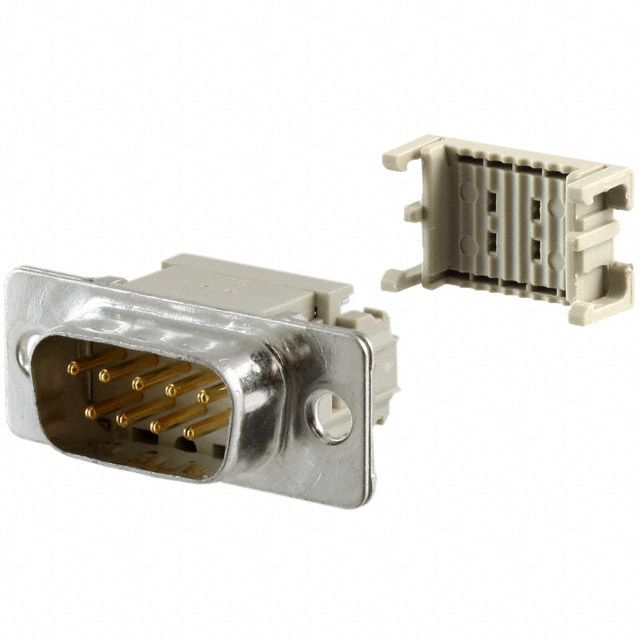

CONN D-SUB PLUG 9POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-1393486-2
ActiveTE Connectivity AMP Connectors
CONN D-SUB PLUG 9POS IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-1393486-2 | 1393486 Series |
|---|---|---|
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Form | Stamped | Stamped |
| Contact Type | Signal | Signal |
| Features | Grounding Indents, Shielded | Grounding Indents, Shielded, Strain Relief |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 9 | 9 - 37 |
| Number of Rows | 2 | 2 |
| Shell Size, Connector Layout | - | 4 (DC, C) |
| Shell Size, Connector Layout | - | 2 |
| Shell Size, Connector Layout [custom] | DE, E | DE, E |
| Shell Size, Connector Layout [custom] | 1 | 1 |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable |
1393486 Series
CONN D-SUB PLUG 9POS IDC
| Part | Termination | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Form | Connector Type | Number of Rows | Connector Style | Features | Number of Positions | Contact Type | Contact Finish | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1393486-2 | IDC, Ribbon Cable | Housing/Shell (Unthreaded) | DE, E | 1 | Stamped | Male Pins, Plug | 2 | D-Sub | Grounding Indents, Shielded | 9 | Signal | Gold | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 3-1393486-7 | IDC, Ribbon Cable | Housing/Shell (Unthreaded) | Stamped | Receptacle, Female Sockets | 2 | D-Sub | Shielded | 37 | Signal | Gold | Free Hanging (In-Line) | 4 (DC, C) | |||
TE Connectivity AMP Connectors 5-1393486-5 | IDC, Ribbon Cable | Housing/Shell (Unthreaded) | DE, E | 1 | Stamped | Receptacle, Female Sockets | 2 | D-Sub | Shielded, Strain Relief | 9 | Signal | Gold | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 3-1393486-5 | IDC, Ribbon Cable | Housing/Shell (Unthreaded) | Stamped | Receptacle, Female Sockets | 2 | D-Sub | Shielded | 15 | Signal | Gold | Free Hanging (In-Line) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1393486 Series
9 Position D-Sub Plug, Male Pins Connector
Documents
Technical documentation and resources
