3-1393486-7

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 37POS IDC

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 37POS IDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1393486-7	1393486 Series

Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Form	Stamped	Stamped
Contact Type	Signal	Signal
Features	Shielded	Grounding Indents, Shielded, Strain Relief
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	37	9 - 37
Number of Rows	2	2
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Shell Size, Connector Layout	-	2
Termination	IDC, Ribbon Cable	IDC, Ribbon Cable

CONN D-SUB PLUG 9POS IDC

Part	Termination	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Form	Connector Type	Number of Rows	Connector Style	Features	Number of Positions	Contact Type	Contact Finish	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout
TE Connectivity AMP Connectors 4-1393486-2	IDC, Ribbon Cable	Housing/Shell (Unthreaded)	DE, E	1	Stamped	Male Pins, Plug	2	D-Sub	Grounding Indents, Shielded	9	Signal	Gold	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-1393486-7	IDC, Ribbon Cable	Housing/Shell (Unthreaded)			Stamped	Receptacle, Female Sockets	2	D-Sub	Shielded	37	Signal	Gold	Free Hanging (In-Line)	4 (DC, C)
TE Connectivity AMP Connectors 5-1393486-5	IDC, Ribbon Cable	Housing/Shell (Unthreaded)	DE, E	1	Stamped	Receptacle, Female Sockets	2	D-Sub	Shielded, Strain Relief	9	Signal	Gold	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-1393486-5	IDC, Ribbon Cable	Housing/Shell (Unthreaded)			Stamped	Receptacle, Female Sockets	2	D-Sub	Shielded	15	Signal	Gold	Free Hanging (In-Line)		2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

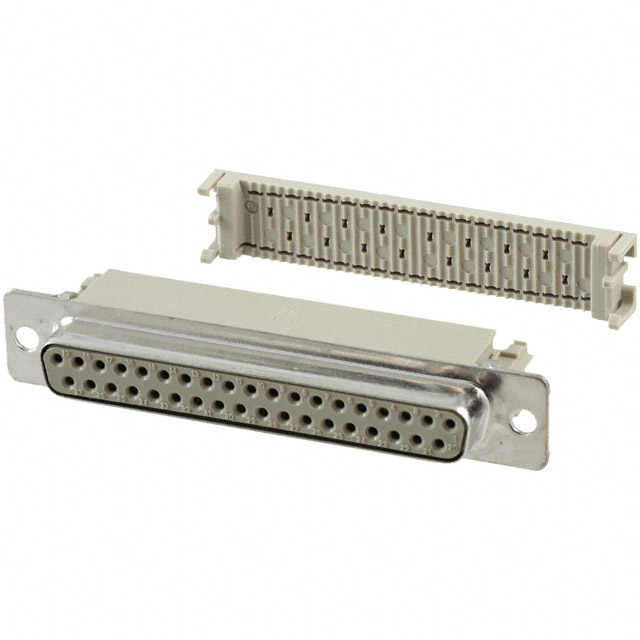

37 Position D-Sub Receptacle, Female Sockets Connector
