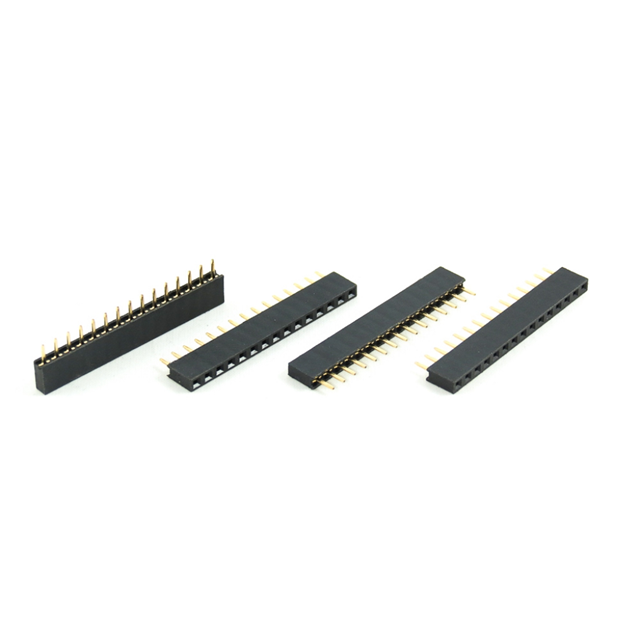

2042-1X08G00SA

Active

Oupiin

PCB SOCKET, SINGLE ROW, 8 PIN, S

Deep-Dive with AI

Search across all available documentation for this part.

2042-1X08G00SA

Active

Oupiin

PCB SOCKET, SINGLE ROW, 8 PIN, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2042 Series

8 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2042-1X08G00SA	2042 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	0.224 in	0.197 - 0.224 in
Insulation Height	5.7 mm	5 - 5.7 mm
Insulation Height	-	0.098 in
Insulation Height	-	2.5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	8	4 - 30
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Termination	Solder	Solder

2042 Series

PCB SOCKET, DOUBLE ROW, 16 PIN,

Part	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Number of Positions	Current Rating (Amps)	Contact Type	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Positions
Oupiin 2042-2X08G00RA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.197 in	5 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic	16	2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle
Oupiin 2042-1X05G00RB	1			Copper Alloy	0.1 in	2.54 mm	Flash			UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle	0.098 in	2.5 mm
Oupiin 2042-2X07G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			14
Oupiin 2042-2X06G00RB	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.197 in	5 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle			12
Oupiin 2042-2X11G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			22 positions
Oupiin 2042-1X04G00RB	1			Copper Alloy	0.1 in	2.54 mm	Flash			UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole, Right Angle	0.098 in	2.5 mm	4
Oupiin 2042-2X05G00SB	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			10
Oupiin 2042-1X10G00SA	1			Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			10
Oupiin 2042-1X04G00SB	1			Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			4
Oupiin 2042-2X15G00SA	2	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Flash	0.224 in	5.7 mm	UL94 V-0	Solder	Square	105 ░C	-55 °C	Socket	Flash	3.2 mm	0.126 in	Glass Filled, Polyester, Thermoplastic		2 A	Female Socket	Push-Pull	All	Gold	Gold	Through Hole			30
